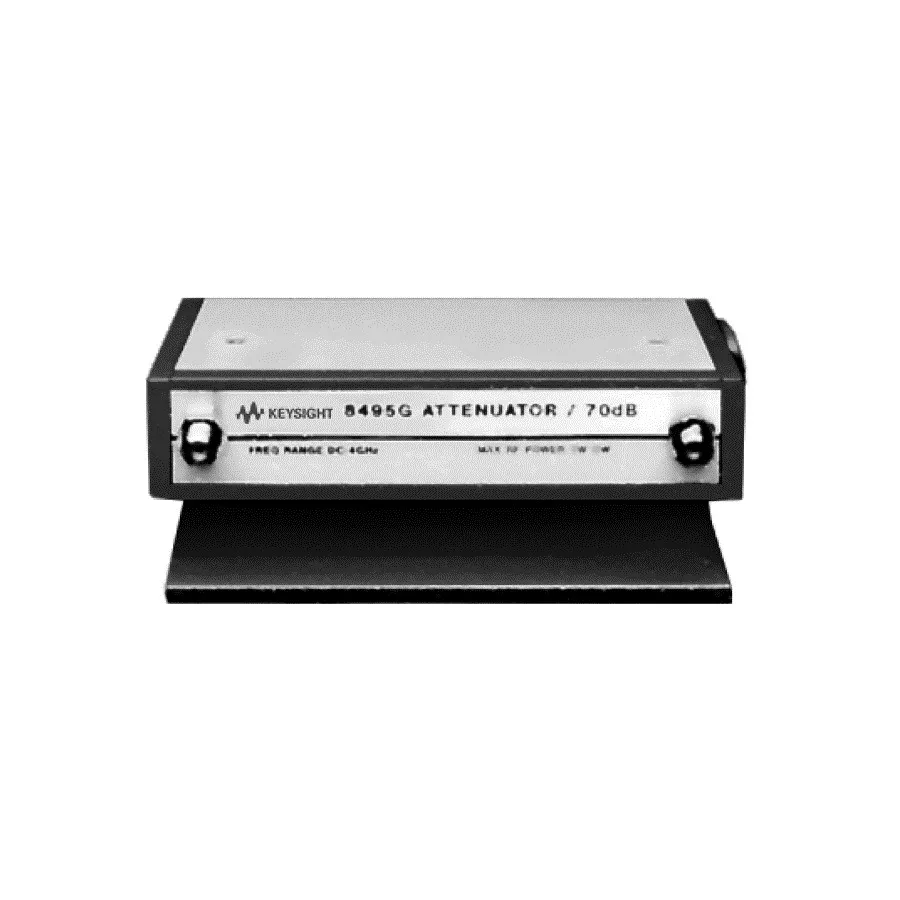

Keysight 8495G/002/016/024 Programmable Step Attenuator
Request a quote
Keysight 8495G/002/016/024 programmable step attenuator, DC to 4 GHz, 70 dB range, 10 dB steps, SMA female, 24 VDC.
Product details
| Model | 8495G/002/016/024 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 8495G/002/016/024 is a programmable step attenuator operating from DC to 4 GHz with SMA female connectors and 24 VDC operation. It provides attenuation in 10 dB steps from 0 to 70 dB with exceptional repeatability of 0.01 dB typical. Precision gold-plated leaf springs ensure long life over 5 million cycles. A maximum switching time of 20 ms including contact settling speeds automatic testing applications.
Key Features
- Frequency range: DC to 4 GHz
- Attenuation: 0 to 70 dB in 10 dB steps
- Insertion loss at 0 dB: 0.4 dB + 0.07 dB/GHz
- Maximum SWR: 1.35
- Repeatability: 0.03 dB max, 5 million cycles per section typical
- Maximum RF input power: 1 W average, 100 W peak
- RF connection: SMA female connectors
- Supply voltage: 24 VDC
- Programming connector: 10-pin through-hole to 14-pin DIP cable
Applications
- RF and microwave test and measurement
- Automatic testing systems
- Signal conditioning
Specifications
| Series | 8495x Series |
