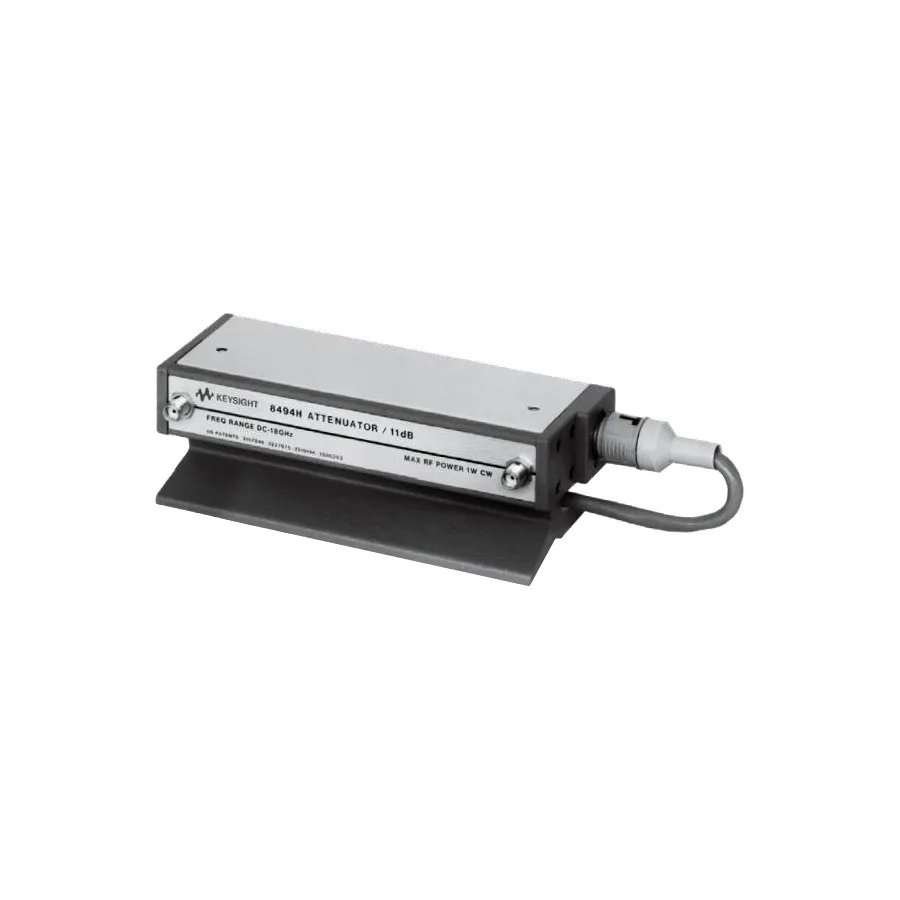

Keysight 8494H/002/016/024 Programmable Step Attenuator
Request a quote
Keysight 8494H/002/016/024 programmable step attenuator with 0–11 dB attenuation in 1 dB steps, frequency range DC to 18 GHz, exceptional 0.01 dB repeatability, and 5 million cycle lifespan.
Product details
| Model | 8494H/002/016/024 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 8494H is a programmable step attenuator for applications from DC to 18 GHz. It provides attenuation in 1 dB steps from 0 to 11 dB with exceptional repeatability and reliability. Precision gold-plated leaf springs ensure long operational life and very high attenuator repeatability (typically 0.01 dB).
Key Features
- Frequency range: DC to 18 GHz
- Attenuation range: 0 to 11 dB in 1 dB steps
- Repeatability: 0.01 dB (typical)
- Life span: 5 million cycles per section
- Switching time: 20 ms maximum (including contact settling)
- Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
- RF power handling: 1 W (average), 100 W (peak)
- Optional NIST traceable calibration data available
Applications
- Automatic RF testing and measurement systems
- Signal level control in microwave systems
- Impedance matching and attenuation in RF circuits
Specifications
| Series | 8494x Series |
