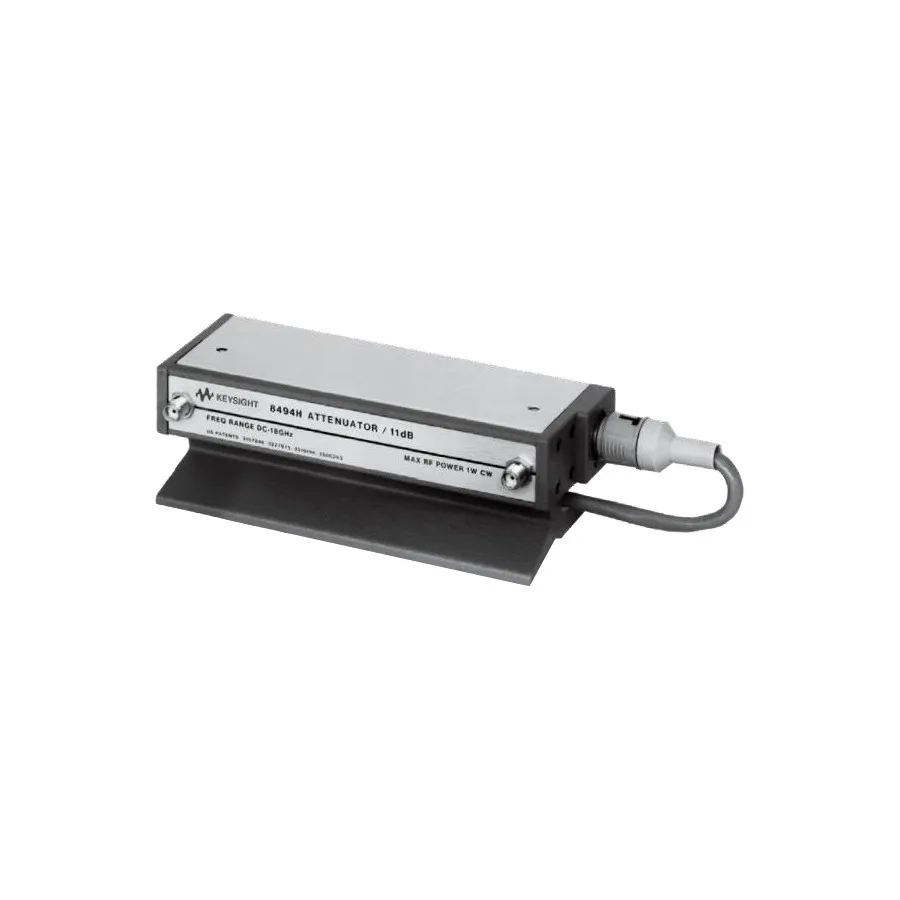

Keysight 8494H/001/024/060 Programmable Step Attenuator
Request a quote
Keysight 8494H/001/024/060 programmable step attenuator with dc to 18 GHz coverage, 0 to 11 dB attenuation in 1-dB steps, and Type-N female connectors.
Product details
| Model | 8494H/001/024/060 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 8494H/001/024/060 is a programmable step attenuator designed for precision RF signal attenuation from dc to 18 GHz. It provides attenuation in 1-dB steps from 0 to 11 dB with exceptional repeatability and reliability. Precision gold-plated leaf springs ensure long operational life exceeding 5 million cycles with consistent performance.
Key Features
- Frequency range: dc to 18 GHz
- Attenuation: 0 to 11 dB in 1-dB steps
- Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
- Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
- Repeatability: 0.01 dB typical, 0.03 dB maximum per section over 5 million cycles
- Switching time: 20 ms maximum
- Maximum RF input power: 1 W average, 100 W peak
- RF connector: Type-N female
- Supply voltage: 24 Vdc
- Programming connector: 12-pin Viking with bare wire cable
- NIST traceable calibration available (Option UK6)
Applications
- Automated RF and microwave test systems
- Precision signal level control in test instrumentation
- Long-term reliability in production test environments
Specifications
| Series | 8494x Series |
