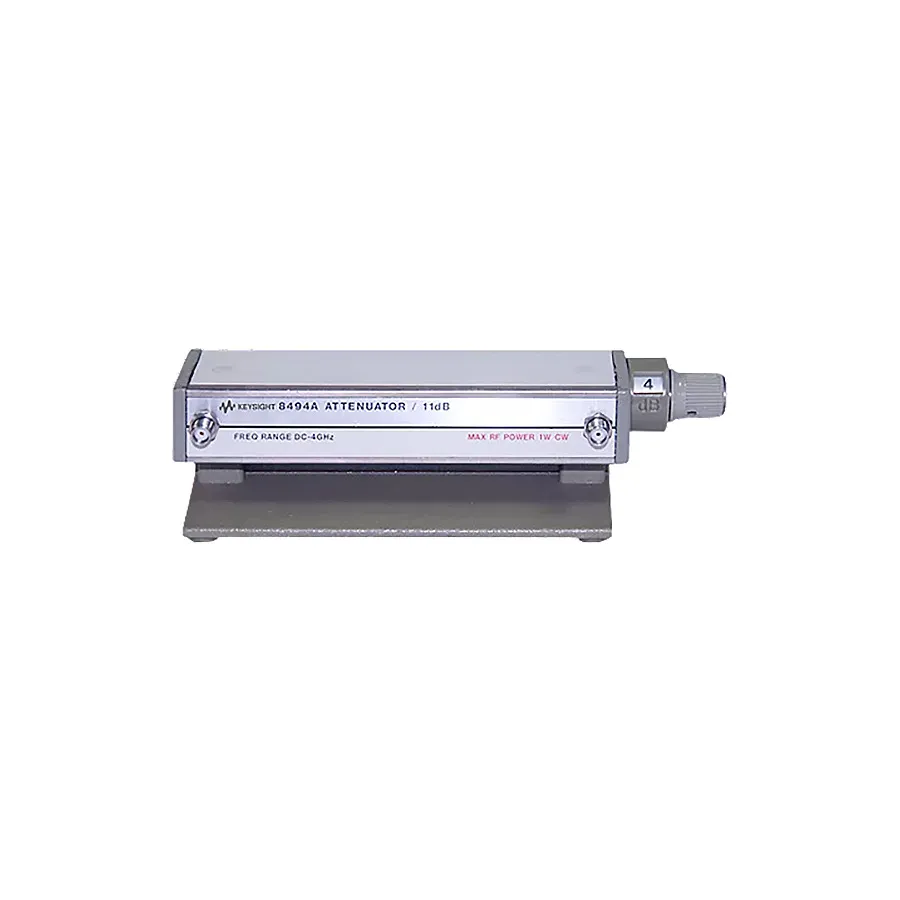

Keysight 8494A/002 Manual Step Attenuator
Request a quote
Keysight 8494A/002 manual step attenuator with 0-11 dB range, SMA connector, and DC-4 GHz operation.
Product details
| Model | 8494A/002 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 8494A/002 is a precision manual step attenuator for DC to 4 GHz applications. It provides stable attenuation in 1 dB steps from 0 to 11 dB with exceptional repeatability and reliability. Precision gold-plated leaf spring contacts ensure long operational life, rated for over 5 million cycles, making it ideal for RF and microwave test and measurement applications.
Key Features
- Frequency Range: DC to 4 GHz
- Attenuation Range: 0 to 11 dB in 1 dB steps
- Insertion Loss at 0 dB: 0.6 dB + 0.09 dB/GHz
- Maximum SWR: 1.5
- Repeatability: 0.03 dB maximum over 5 million cycles
- SMA female connector
- Maximum RF Input Power: 1 W average, 100 W peak
Applications
- RF and microwave test and measurement
- Signal level control and adjustment
- System development and troubleshooting
Specifications
| Series | 8494x Series |
