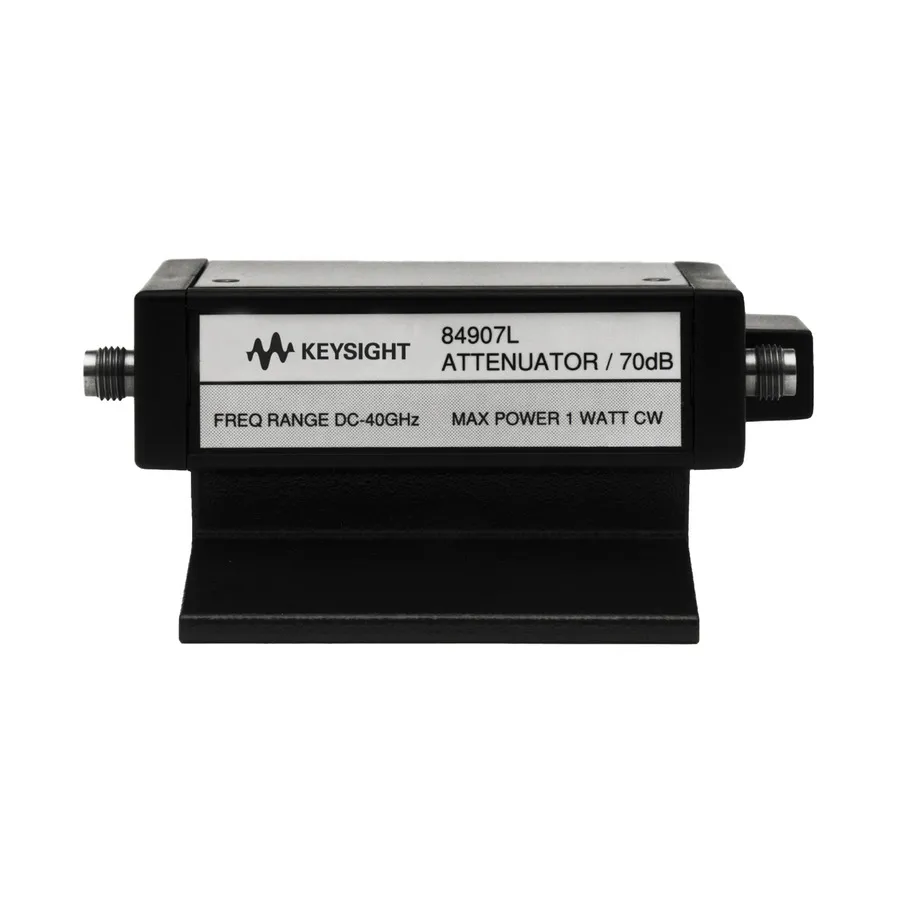

Keysight 84907L Programmable Step Attenuator
Request a quote
Keysight 84907L programmable step attenuator with 0 to 70 dB attenuation in 10 dB steps, DC to 40 GHz frequency range, and 0.03 dB repeatability.
Product details
| Model | 84907L/024/101 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 84907L programmable step attenuator sets new standards for size and performance. It offers coaxial measurements to 40 GHz in a compact, rugged design with repeatability better than 0.03 dB and excellent switching life exceeding 5 million cycles per section. The unit achieves high attenuation accuracy and low standing wave ratio through miniature thin-film attenuation cards composed of high-stability tantalum nitride film on sapphire substrate, with outstanding insertion loss of 2.4 dB at 40 GHz.
Key Features
- Frequency range: DC to 40 GHz
- Attenuation range: 0 to 70 dB in 10 dB steps
- Insertion loss at 0 dB: 0.6 dB + 0.03 dB/GHz
- Maximum SWR: 1.25 to 12.4 GHz, 1.5 to 34 GHz, 1.7 to 40 GHz
- Repeatability: 0.03 dB maximum, 5 million cycles per section, typical
- Maximum RF input power: 1 W average, 50 W peak
- Connector type: 2.4 mm female
- Programming connector: 10-pin socket
Applications
- RF and microwave test and measurement
- Automated test equipment systems
- High-frequency signal attenuation
- Precision component testing and validation
Specifications
