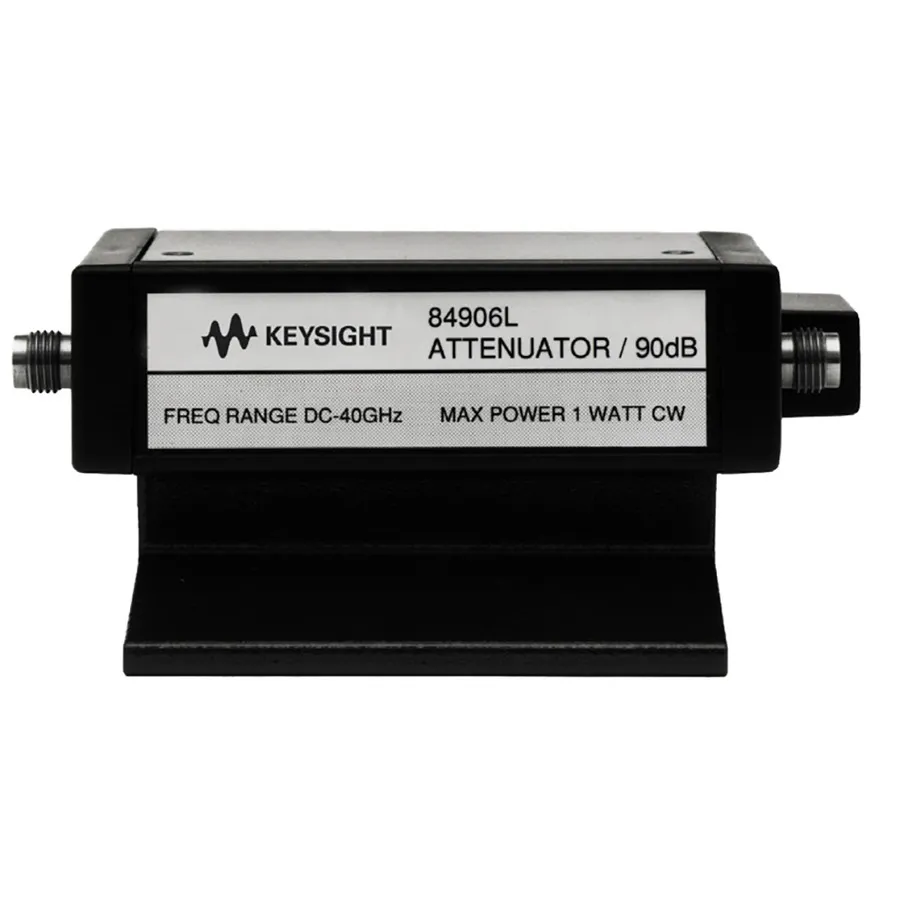

Keysight 84906L/006/024 Programmable Attenuator
Request a quote
Keysight 84906L/006/024 is a programmable step attenuator with 40 GHz frequency range, 90 dB attenuation in 10 dB steps, and 24V supply.
Product details
| Model | 84906L/006/024 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 84906L/006/024 is a programmable step attenuator designed for coaxial measurements to 40 GHz in a compact, rugged form factor. The 24-volt solenoid configuration and 2.92mm SMA-compatible connectors make it suitable for bench and automated test equipment (ATE) applications.
Key Features
- 40 GHz frequency range
- 90 dB attenuation in 10 dB steps
- Repeatability better than 0.03 dB
- Greater than 5 million switching cycles per section
- Maximum RF input power: 1 W (average), 50 W (peak)
- 24-volt solenoid supply
- 2.92mm SMA-compatible connectors
Applications
- High-frequency RF measurements
- Automated test equipment (ATE) systems
- Laboratory instrumentation
Specifications
| Series | 84900 Series |
