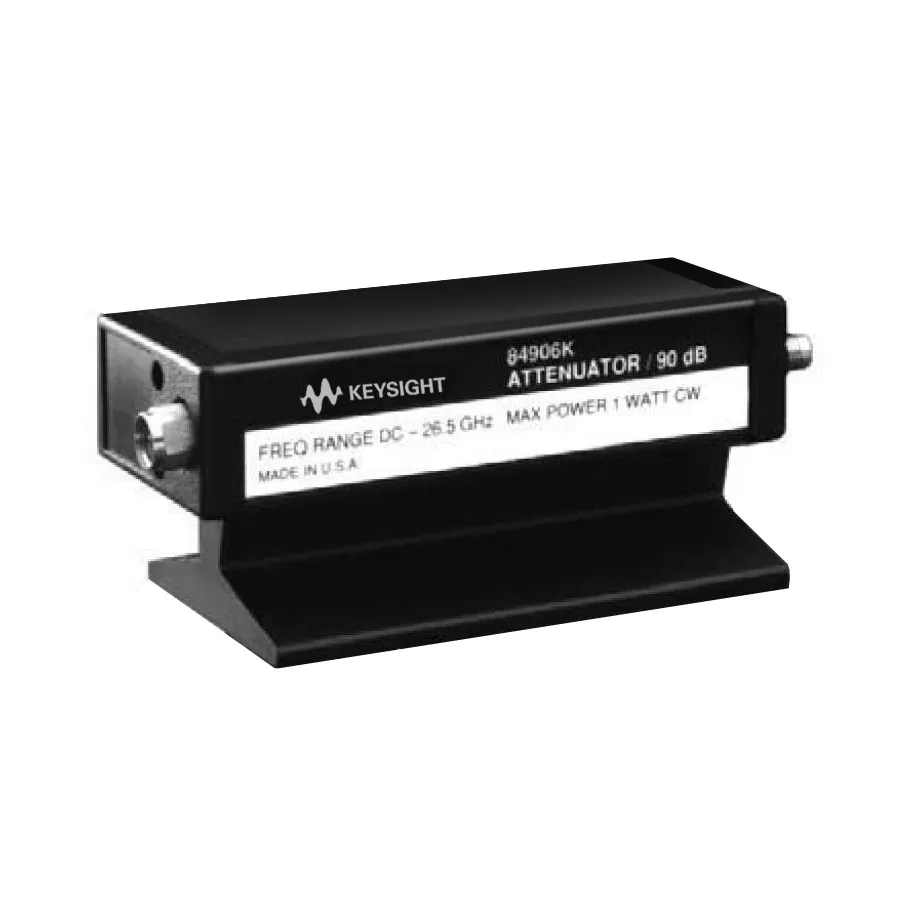

Keysight 84906K Programmable Step Attenuator
Request a quote
Keysight 84906K programmable step attenuator for RF measurements to 26.5 GHz with 0-90 dB attenuation range, 0.03 dB repeatability, and configurable solenoid and connector options.
Product details
| Model | 84906K/004/024 |
| Manufacturer | Keysight |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Keysight 84906K is a programmable step attenuator designed for precision RF and microwave measurements up to 26.5 GHz. This model includes configurable solenoid and connector options to meet diverse measurement system requirements. It combines advanced thin-film construction with exceptional attenuation accuracy and low SWR for reliable signal conditioning in laboratory and ATE environments.
Key Features
- Frequency range: DC to 26.5 GHz
- Attenuation range: 0 to 90 dB in 10 dB steps
- Repeatability: Better than 0.03 dB
- Insertion loss: Less than 2 dB at 26.5 GHz
- Switching cycles: Greater than 5 million per section
- Maximum RF input power: 1 W average, 50 W peak
- Thin-film tantalum nitride on sapphire substrate
- Configurable solenoid options: 24V (20–30V)
- Multiple connector types: 3.5 mm female, 3.5 mm male/female
- 10-pin socket programming connector
Applications
- RF and microwave signal conditioning
- Automated test equipment (ATE) systems
- Laboratory and production testing
- Precision attenuation in measurement systems
