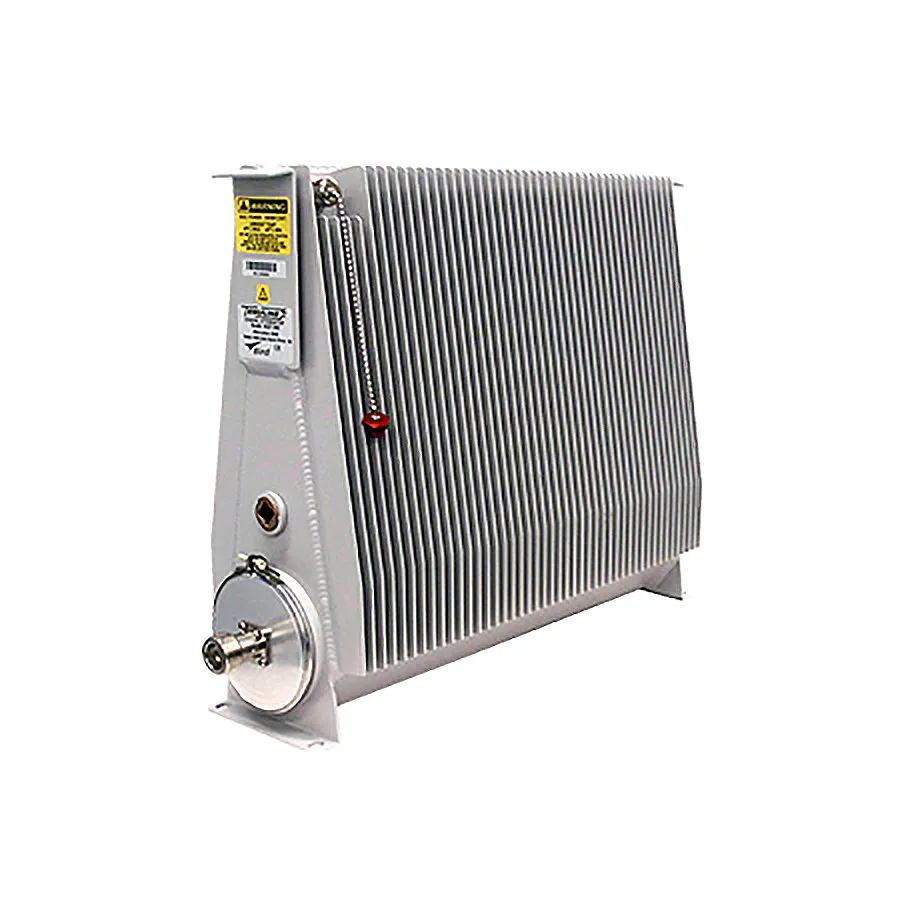

Bird 8327-310 Fixed Attenuator
Request a quote
Bird 8327-310 is a 1 kW fixed RF attenuator with 30 dB attenuation and convection cooling, covering DC to 500 MHz with QC-LC(f) input and QC-N(f) output connectors.
Product details
| Model | 8327-310 |
| Manufacturer | Bird |
| Category | Attenuators |
| Availability | Made to order |
Description
Overview
The Bird 8327-310 is a 1 kW fixed RF attenuator from the Tenuline series, offering high-quality, robust construction designed for reliable operation. It features a convection cooling system and is ideal for reducing power levels and VSWR, isolating components under test, harmonic signal analysis, and serving as comparison standards in RF measurement applications.
Key Features
- 1 kW power handling
- 30 dB fixed attenuation
- DC to 500 MHz frequency range (1.1:1 max VSWR)
- Convection cooling method
- Input connector: QC-LC(f)
- Output connector: QC-N(f)
- Rugged, reliable construction
- No external power required
- Years of trouble-free operation
Applications
- Reducing RF power levels for measurement devices
- VSWR reduction and component isolation
- Harmonic signal analysis
- RF comparison standards
Specifications
| Attenuation | 30 dB |
| Connector Type | N(f) |
| Frequency | DC-500MHz |
| Maximum Power | 1 kW |
| Finish | Gray Powder Coat |
| Impedance | 50 Ohms |
