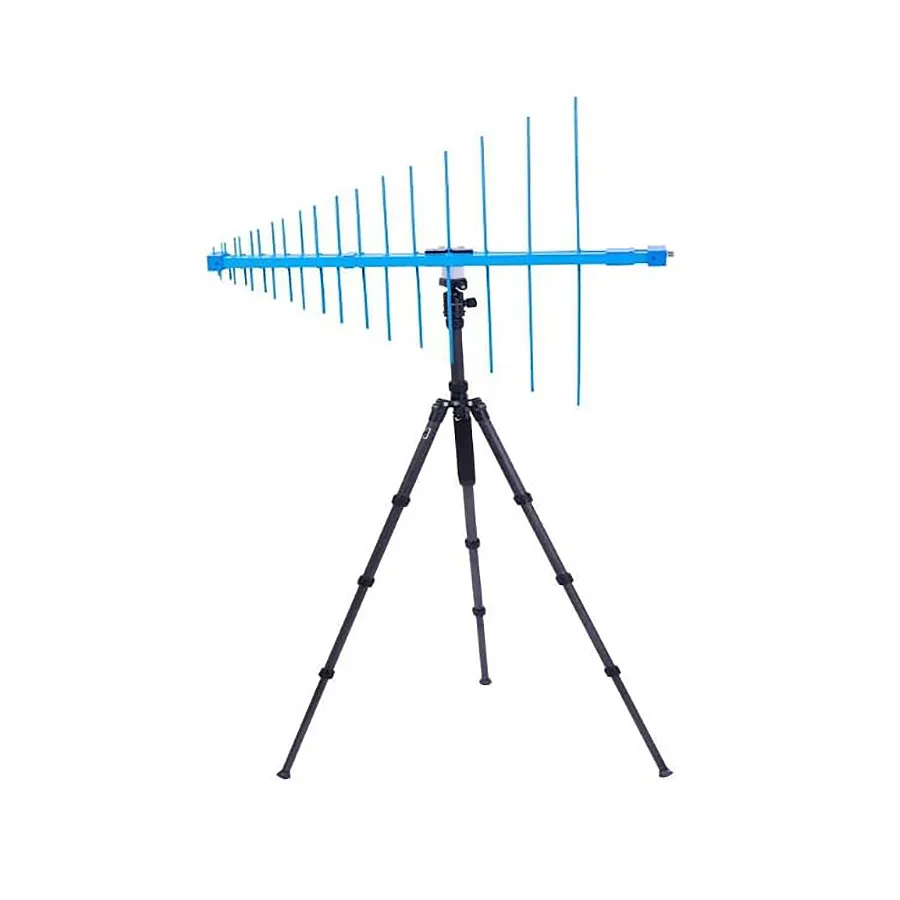

TekBox TBMA3 Logarithmic Periodic Antenna
Request a quote
TekBox TBMA3 is a logarithmic periodic antenna for radiated noise measurement covering 250 MHz to 1.3 GHz with 6 dBi gain and 1/4-inch tripod mount.
Description
Overview
The TekBox TBMA3 is a logarithmic periodic antenna designed for radiated noise measurement in the frequency range of 250 MHz to 1.3 GHz. The antenna features a powder-coated aluminum alloy construction with radiating elements and supporting booms. It is equipped with a standard female N-connector and designed to meet CISPR 16 specifications for log-periodic measurement antennas in the frequency range above 300 MHz up to 1 GHz.
Key Features
- Frequency range: 250 MHz to 1.3 GHz
- Isotropic gain: 6 dBi (+/- 1.5 dB)
- VSWR: < 1.95:1 (1.35:1 average)
- Antenna factor: 17.7-27.5 dB/m
- Powder-coated aluminum alloy construction
- Standard female N-connector
- 1/4-inch thread mount for standard tripods
- Dimensions: 29.49-inch width x 6.70-inch height
Applications
- Radiated noise measurement and EMC testing
- CISPR 16 compliance testing
- Pre-compliance electromagnetic testing
Included Accessories
- TBMA3 Antenna
- Antenna Bracket
- Mounting Adapter
- Protective Carrying Case
Specifications
| Series | TBMA Series |
| Includes | TBMA3 Antenna, Antenna Bracket, Mounting Adapter, Carrying Case |
