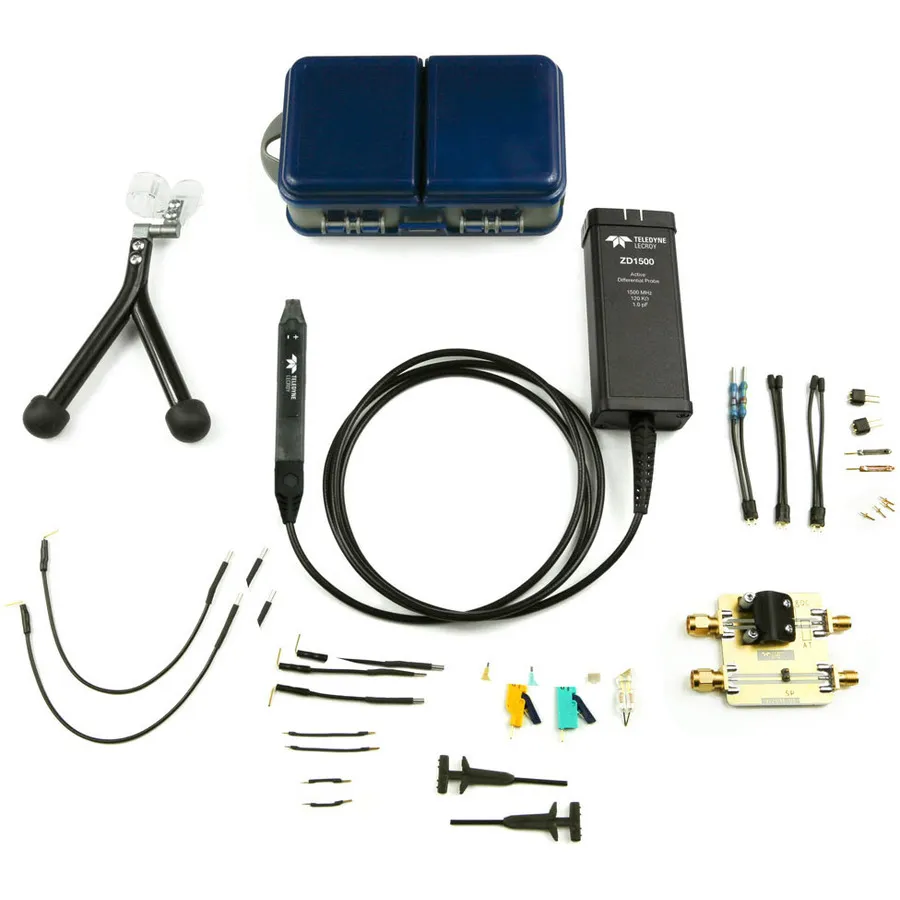

Teledyne LeCroy ZD1500 Active Differential Probe
Request a quote
Teledyne LeCroy ZD1500 is an active differential probe with 1.5 GHz bandwidth, 1 pF input capacitance, and ±8V offset for high-speed signal measurements.
Product details
| Model | ZD1500 |
| Manufacturer | Teledyne LeCroy |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy ZD1500 is an active differential probe engineered for high-frequency measurements up to 1.5 GHz. With ProBus interface integration, it seamlessly integrates with the oscilloscope with transparent gain and offset controls. When used with Teledyne LeCroy digital oscilloscopes, no external power supply is required.
Key Features
- Bandwidth: 1.5 GHz
- Input capacitance: 1 pF (minimizes loading distortion)
- Impedance: 120 kΩ
- Differential range: 18 Vp-p with ±8V offset
- Common mode range: ±10V
- System noise: 4 mVrms
- ProBus interface for transparent integration
- Extensive tip accessory options
Applications
- High-speed automotive signal measurement
- Serial data probing and analysis
- Power electronics testing
- General-purpose high-frequency measurements
Specifications
| Bandwidth | 1.5 GHz |
| Input Capacitance | 1 pF |
| Maximum Input Voltage | 8 V |
| Input Impedance | 120 kΩ |
| Interface | ProBus |
| Series | ZD Series |
| Risetime | 200 ps |
| Type | Differential Probe |
| Warranty | 1 Year |
