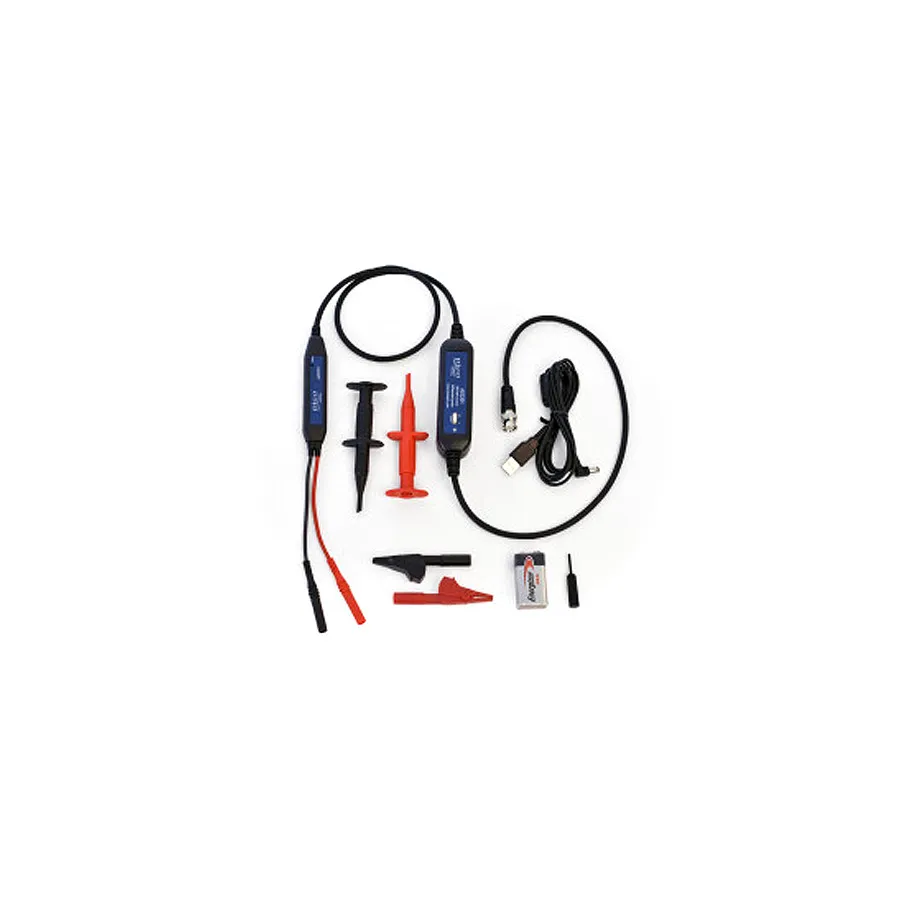

Pico Technology AD2201 Active Differential Probe

Overview

The Pico Technology AD2201 is a 200 MHz bandwidth active differential probe designed for high-speed measurement applications requiring safe and accurate differential voltage measurements. This probe extends the functionality of standard single-ended input oscilloscopes, allowing measurement of differential signals with a ±20 V differential range and a common-mode range of up to ±60 V DC + peak AC. The redesigned probe includes improved powering options with in-line battery module and integrated 5 V USB power for use with standard USB chargers.

Key Features

• 200 MHz bandwidth for high-speed signal acquisition
• 10:1 attenuation ratio
• DC accuracy (gain error): ±1%
• Rise time: 1.75 ns
• Differential measurement range: ±20 V
• Common-mode range: ±60 V (DC + peak AC)
• Input impedance: 500 kilohms ∥ 7 pF each side to ground
• CMRR: 80 dB at 60 Hz / 50 dB at 10 MHz
• Input cable length: 50 cm
• BNC output cable length: 120 cm
• Battery or USB-powered operation

Applications

• Safe differential voltage measurements in power circuit applications
• High-speed balanced differential signal acquisition from serial communication buses
• BroadR-Reach and similar differential bus testing
• Power electronics and switching circuit analysis

Included Accessories

• Test hooks, pair (red and black)
• Crocodile clips, pair (red and black)
• 9 V battery
• USB power cable (mains adapter not included)
