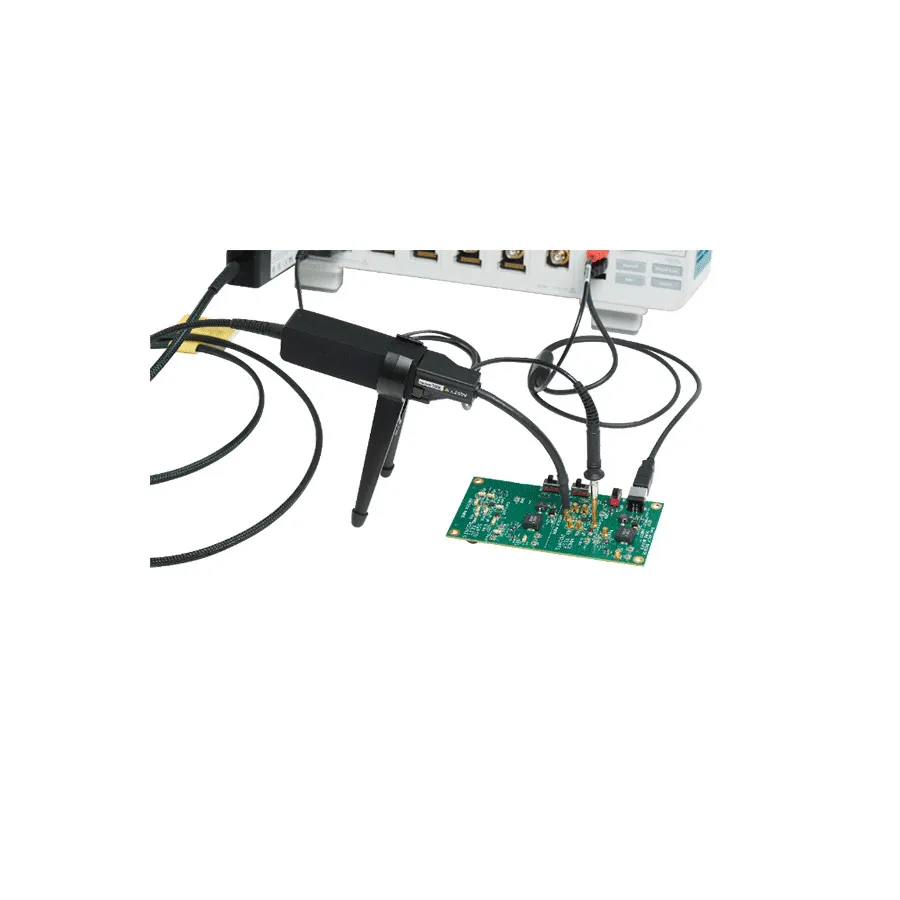

Tektronix TIVM1L Isolated Measurement System
Request a quote
Tektronix TIVM1L isolated measurement system provides DC to 1 GHz bandwidth with 60 kV common mode voltage isolation and ±2500 V differential measurement range.
Product details
| Model | TIVM1L |
| Manufacturer | Tektronix |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TIVM1L is an isolated measurement system designed for high-voltage testing and analysis on power electronics circuits. It uses electro-optic sensor technology with optical isolation to provide complete galvanic isolation between the device under test and the oscilloscope, eliminating ground loop issues and enabling safe floating measurements on high-voltage circuits.
Key Features
- Electro-optic sensor with optical isolation for complete galvanic separation
- Powered over optical fiber (no batteries required)
- Four separate lasers and optical sensor for reliable measurements
- Compatible with most Tektronix oscilloscopes via TekVPI interface
- Supports both DC and AC input coupling
- Safety certified design
Applications
- Complete galvanic isolation required
- High common mode voltage measurements
- High frequency common mode interference environments
- High frequency signal measurements
- Measurements in high EMI environments
- EMI compliance testing
- ESD testing
Specifications
| Bandwidth | 1 GHz |
| Input Capacitance | 2 pF |
| Cable Length | 393.7" |
| Series | TIVM Series |
