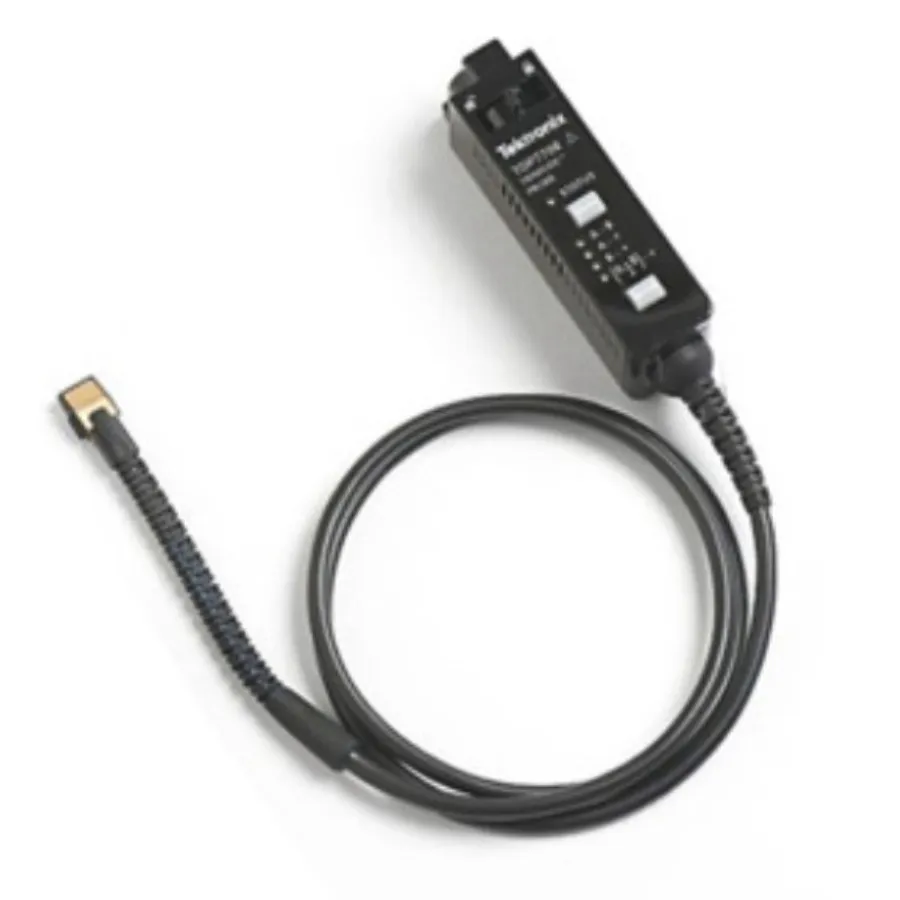

Tektronix TDP7710 TriMode Probe
Request a quote
Tektronix TDP7710 is a 10GHz TriMode probe with TekFlex Connector, enabling differential, single-ended, and common-mode measurements.
Product details
| Model | TDP7710 |
| Manufacturer | Tektronix |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TDP7710 is a 10GHz TriMode probe designed for the highest probe fidelity in real-time oscilloscope measurements. It features TekFlex Connector technology for easy, versatile connectivity and FlexChannel interface for direct oscilloscope and probe control. The TriMode capability enables a single probe setup to perform differential, single-ended, and common-mode measurements without repositioning the probe.
Key Features
- 10 GHz bandwidth for high-fidelity signal capture
- TekFlex Connector technology for easy, versatile connectivity
- Probe and tip specific S-parameters with full AC calibration
- FlexChannel interface for direct oscilloscope/probe control
- TriMode capability for differential, single-ended, and common-mode measurements
- Automatic probe and tip recognition when attached to oscilloscope
Applications
- Real-time oscilloscope measurements on high-speed electronics
- Multi-mode signal analysis and characterization
- Differential circuit testing and debugging
Included Accessories
- Manual
- 2 solder-in tips
- Certificate of traceable calibration
- Calibration data report
- 1-year warranty
Specifications
| Bandwidth | 10 GHz |
| Attenuation | 4X, 10X |
| Input Capacitance | 0.4 pF |
| Maximum Input Voltage | 12 V |
| Input Impedance | 100 kâĤ |
| Interface | FlexChannel |
| Cable Length | 1.21 m |
| Series | TDP7000 Series |
| Risetime | 45 ps |
| Type | Differential Probe |
