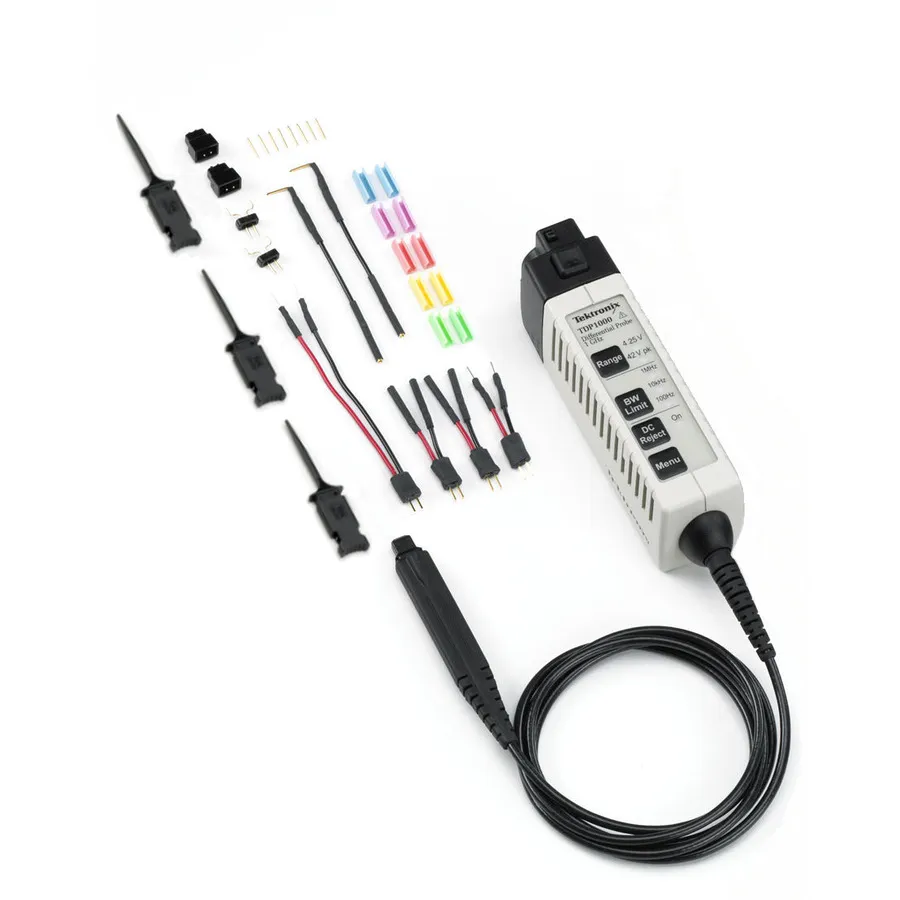

Tektronix TDP0500 High Voltage Differential Probe

Overview

The Tektronix TDP0500 is a high-voltage differential probe designed for high-speed electrical measurements in Switch Mode Power Supply (SMPS), CAN/LIN Bus, and digital system designs. It offers 500 MHz bandwidth with selectable bandwidth-limiting filters and is powered directly by oscilloscopes equipped with the TekVPI probe interface.

Key Features

• 500 MHz probe bandwidth
• Selectable bandwidth-limiting filters: 100 Hz, 10 kHz, 1 MHz, Full Bandwidth
• Dual attenuation: 5X and 50X
• Maximum input voltage: ±100V (DC + peak AC)
• Differential input capacitance ≤ 1 pF
• Differential input resistance: 1 MΩ
• Input offset range: ±42V at 5X or 50X attenuation
• Cable length: 47.2 inches (1.2 m)
• Compact probe head for small-geometry circuit elements
• Direct connection to TekVPI probe interface with automatic units scaling
• Oscilloscope-displayed probe menu for setup control and status information

Applications

• Switch Mode Power Supply (SMPS) design and troubleshooting
• CAN/LIN Bus testing and analysis
• High-speed digital system measurements

Included Accessories

• Y-lead set (2)
• Solder-down lead sets: 1-inch (1) and 3-inch (1)
• Micro circuit test tips (3)
• Tip savers (2)
• Longhorn adapters (2)
• Straight-pin probe tips (8)
• 3-inch ground leads (2)
• Color-coding bands (2 each of 5 colors)
• Nylon carrying case (1)
