Tektronix P6243 Active FET Probe
Request a quote

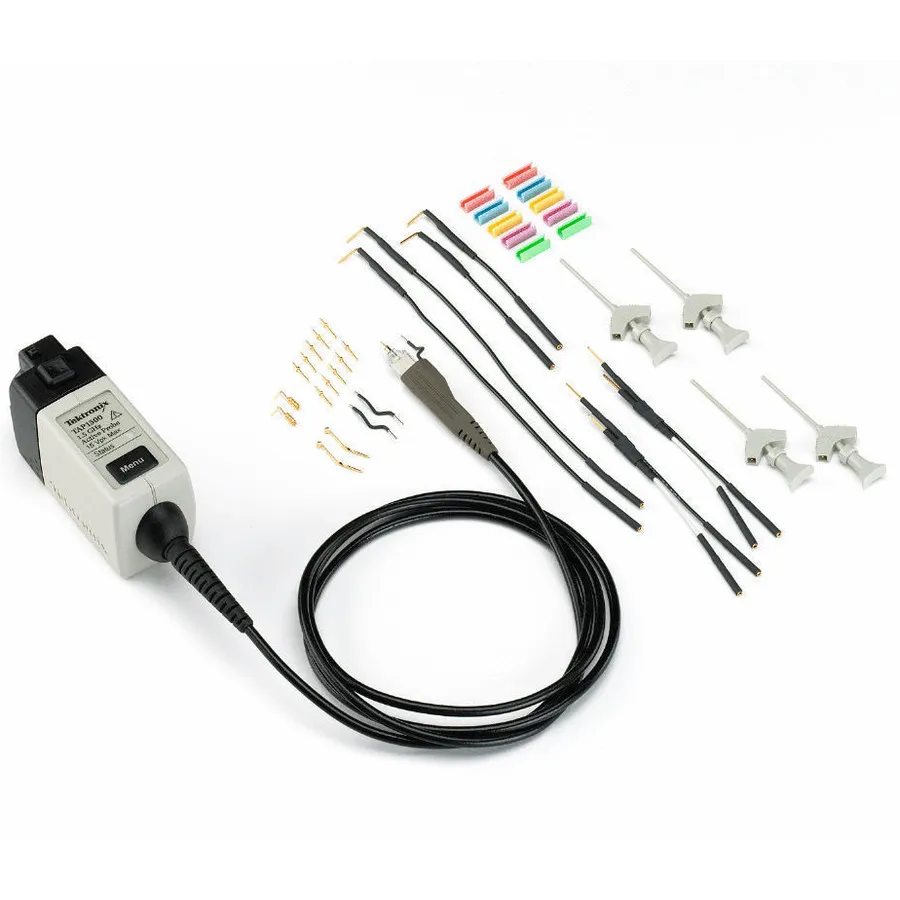

Tektronix P6243 is a 1 GHz active FET probe with ≤1 pF input capacitance, designed for direct access to SMDs as small as 0.5 mm pitch.
Product details
| Model | P6243 |
| Manufacturer | Tektronix |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Tektronix P6243 is a 1 GHz active FET probe optimized for high-speed signal acquisition on surface mount devices. With its low input capacitance (≤1 pF) and high input resistance (1 MΩ), it allows direct access to SMDs as small as 0.5 mm pitch without significantly affecting the signal or device under test. The probe is powered directly through the TEKPROBE BNC interface, eliminating the need for additional power supplies or cables.
Key Features
- 1 GHz bandwidth (probe only)
- ≤1 pF input capacitance
- 1 MΩ input resistance
- Direct access to SMDs as small as 0.5 mm pitch
- Measures CMOS, BiCMOS, ECL, GaAs, and TTL logic
- Low-mass probe head and cable
- Powered by TEKPROBE BNC interface (no additional power supplies required)
Applications
- Surface mount device (SMD) signal measurement
- High-speed logic circuit testing
- Signal acquisition on compact circuit boards
Specifications
| Bandwidth | 1 GHz |
| Attenuation | 10X |
| Input Capacitance | 1 pF |
| Maximum Input Voltage | 15 V |
| Input Impedance | 1 MΩ |
| Interface | TekProbe BNC |
| Cable Length | 1.3 m |
| Operating Temperature Range | 0 to 50°C |
| Risetime | 350 ps |
| Type | Active Probe |
| Warranty | 1 Year |
