Siglent SAP2500 Active Probe
Request a quote

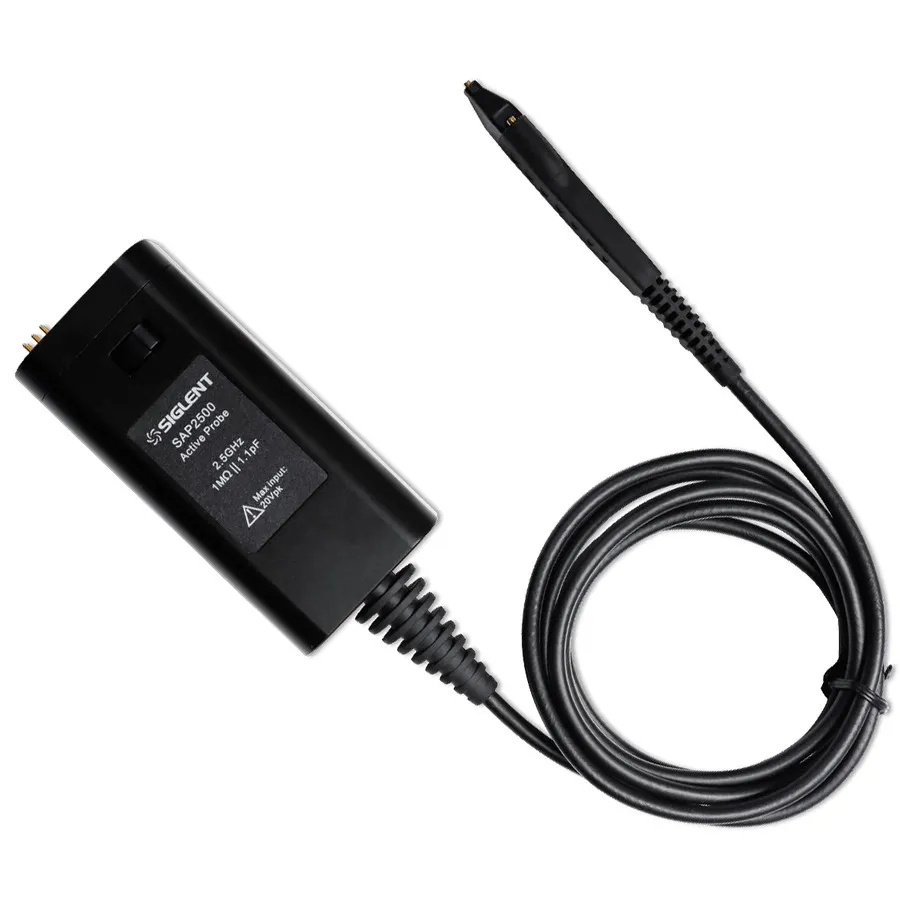

Siglent SAP2500 is a single-ended active probe with 2.5GHz bandwidth, SAPBus interface, and 1.1 pF input capacitance for SIGLENT oscilloscopes.
Product details
| Model | SAP2500 |
| Manufacturer | Siglent |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Siglent SAP2500 is a compact single-ended active probe designed to meet modern oscilloscope measurement requirements with minimal circuit loading. It features a SAPBus interface for direct integration with SIGLENT SDS5000X and SDS6000A oscilloscopes, allowing control from the oscilloscope front panel and power supply from the oscilloscope itself, eliminating the need for external batteries or power supplies.
Key Features
- 2.5 GHz bandwidth with 1.1 pF input capacitance for minimal circuit loading
- 1 Megohm input resistance
- 10X attenuation ratio with less than 3% DC gain accuracy
- ±12 V offset range with ±8 V dynamic input range
- Maximum 20 V non-destructive input voltage
- 130 cm cable length for extended reach
- Direct SAPBus interface integration with SIGLENT oscilloscopes
Applications
- High-frequency circuit measurements and debugging
- Signal integrity testing on digital boards
- Embedded systems development and validation
Included Accessories
- 5 Straight Tips
- 5 Pogo Tips
- L-In Adapter
- Z-Ground
- Y Lead Adapter
- Right Angle Pin Lead 5cm
- Straight Pin Lead 6cm
- Right Angle Pin Lead 10cm
- Straight Pin Lead 12cm
- Channel ID Clips (Set of 4 colors)
Specifications
| Bandwidth | 2.5 GHz |
| Attenuation | 10X |
| Input Capacitance | 1.1 pF |
| Maximum Input Voltage | 12 V |
| Input Impedance | 1 MΩ |
| Interface | SAPBus |
| Cable Length | 1.3 m |
| Series | SAP Series |
| Operating Temperature Range | 5 to 40°C |
| Series Compatibility | SDS5000X/SDS6000A series |
| Type | Active Probe |
