Rohde & Schwarz RT-ZISO10L Isolated Probing System

Overview

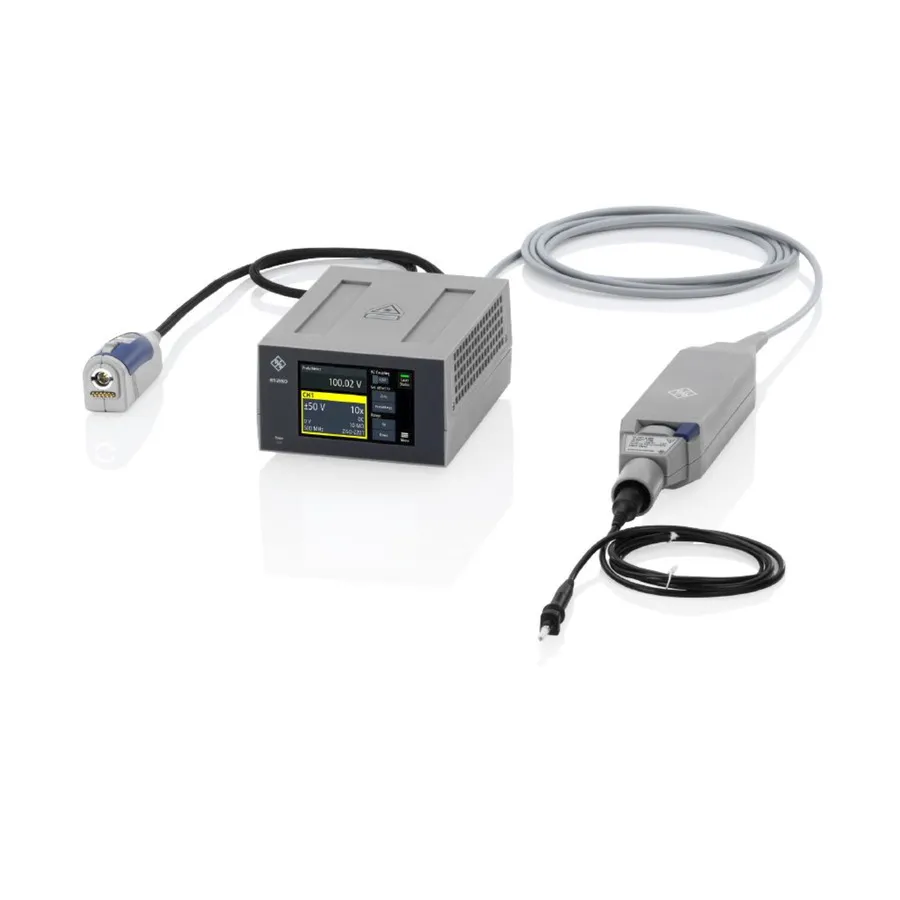

The Rohde & Schwarz RT-ZISO10L is a 1 GHz isolated probing system with an extended 10 m cable for high-frequency measurements at remote or difficult-to-access locations. It uses a power-over-fiber-optic architecture to provide galvanic isolation between the device under test and the measuring instrument, achieving exceptional common-mode rejection and signal fidelity even in extreme voltage environments with fast-switching characteristics.

The system is particularly suited for measuring wide-bandgap semiconductors (SiC, GaN) and other fast-switching power electronics where both precision and safety are critical, especially for applications requiring frequencies up to 1 GHz.

Key Features

• 1 GHz bandwidth with >90 dB CMRR at 1 GHz
• ±3000V differential input range with ±60 kV common mode voltage range
• Power-over-fiber-optic galvanic isolation eliminating ground loops
• Dual connectivity: Rohde & Schwarz probe interface and SMA connector
• CAT III 1000V safety rating compliant with IEC/EN 61010-31
• Thermal drift and gain error compensation for signal integrity
• Formable, long probe tip cables for easy access to measurement points
• 10 m cable length for extended reach to remote measurement points
• Dual probe tips (ZISO-Z301 and ZISO-Z201) for versatile connectivity

Applications

• Wide-bandgap semiconductor device testing (SiC, GaN)
• High-frequency inverter and motor drive development and characterization
• High-voltage power electronics analysis at GHz frequencies with remote probe placement
• High-side gate voltage measurements on complementary switching circuits
• Power conversion system validation and debugging with high-speed signals

Included Accessories

• R&S RT-ZISO isolated probing system
• R&S ZISO-B410 10 m cable
• R&S ZISO-B910 1 GHz bandwidth module
• R&S ZISO-Z301 and ZISO-Z201 probe tips
• Carrying case, operating manual, and probe stand
• Interface cable and SMA to BNC adapter
• External DC power supply for standalone operation
