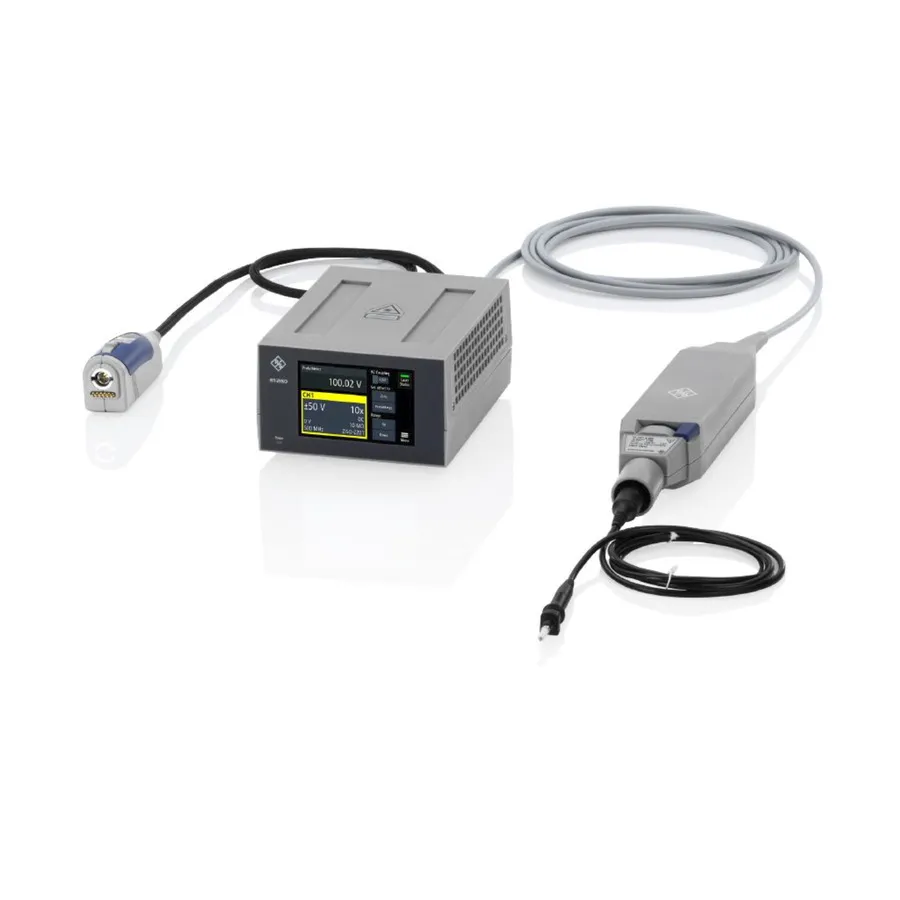

Rohde & Schwarz RT-ZISO03L Isolated Probing System
RT-ZISO03L isolated probing system with 350 MHz bandwidth, 10 m cable, ±3 kV input range, and optical isolation for high-speed electronics testing.
Product details
| Model | RT-ZISO03L |
| Manufacturer | Rohde & Schwarz |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZISO03L is a high-bandwidth isolated probing system with extended cable reach, designed for accurate measurements of fast-switching high-voltage environments. Utilizing fiber-optic isolation, it galvanically isolates the device under test (DUT) for exceptional common-mode rejection and signal fidelity. The 350 MHz bandwidth and 10 m cable enable characterization of high-speed wide-bandgap semiconductors (SiC, GaN) in remote test points.
The system compensates for thermal drifts and gain errors to ensure uncompromising signal accuracy across demanding measurement applications.
Key Features
- 350 MHz Bandwidth with ZISO-B903 included
- 10 m Extended Cable Length (ZISO-B410)
- Galvanic isolation via power-over-fiber-optic architecture
- Common-mode rejection ratio (CMRR) >90 dB at 1 GHz
- ±3 kV differential input range with offset control
- ±60 kV common-mode voltage range
- Dual connectivity with Rohde & Schwarz probe interface and SMA connector
- Includes ZISO-Z301 probe tip for optimal CMRR performance
Applications
- High-speed wide-bandgap semiconductor testing (SiC, GaN devices)
- Inverter and motor drive development with fast switching
- High-voltage power electronics characterization
- Remote measurement points in complex test setups
- Fast switching transient analysis at extended distances
Included Accessories
- Rohde & Schwarz RT-ZISO Isolated probing system
- ZISO-B410 10 m Cable
- ZISO-B903 350 MHz Bandwidth Module
- ZISO-Z301 Probe Tip
- Carrying case
- Operating manual
- Probe stand
- Interface cable
- SMA to BNC adapter
- External DC power supply for standalone operation
Specifications
| Bandwidth | 350 MHz |
| Attenuation | Auto |
| Input Capacitance | 8 pF |
| Maximum Input Voltage | 3000 V |
| Input Impedance | 1 MΩ |
| Interface | Rohde & Schwarz probe interface, SMA |
| Cable Length | 10 m |
| Series | ZISO Series |
| Alternate Product Number | 1804.5000P23 |
| For Use With | R&S Oscilloscopes |
| Includes | Carrying case, Operating manual, Probe stand, Interface cable, SMA to BNC adapter, R&S ZISO-Z301 probe tip, and External DC power supply for standalone operation |
| Operating Temperature Range | 0-40°C |
| Risetime | 1.14 ns |
| Type | Isolated Probe |
| Warranty | 3 Years |
