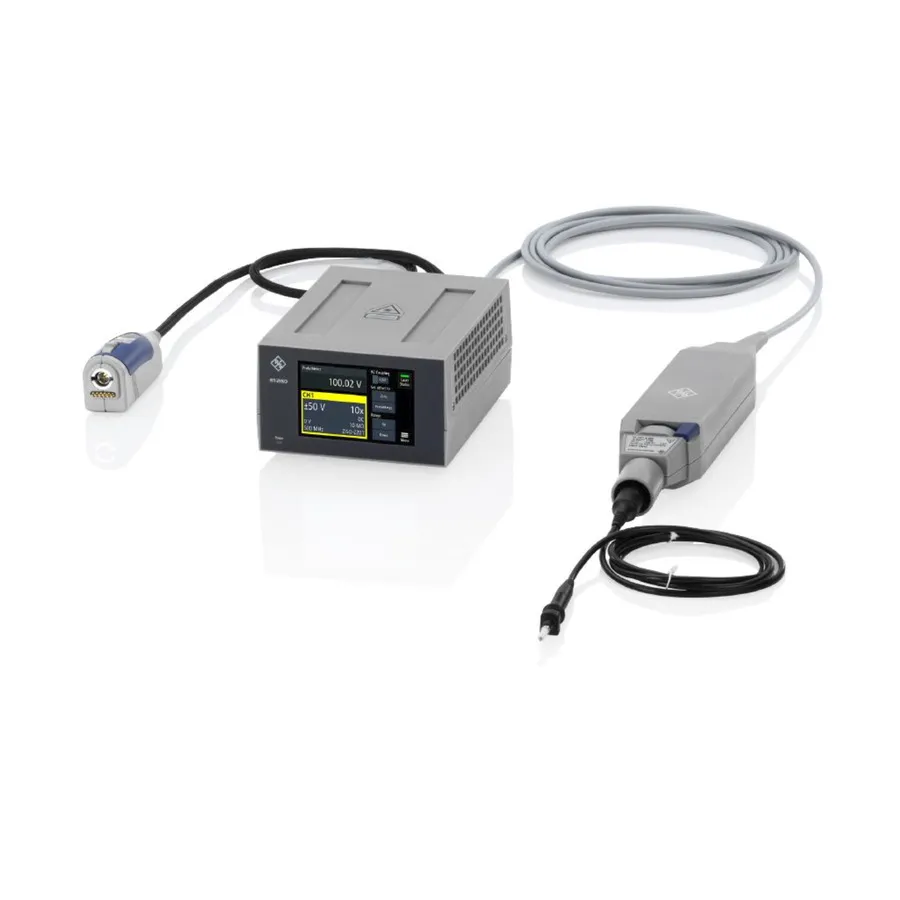

Rohde & Schwarz RT-ZISO02 Isolated Probing System

Overview

The Rohde & Schwarz RT-ZISO02 is an isolated probing system designed for accurate measurements in high-voltage and fast-switching environments. Utilizing fiber-optic isolation, it galvanically isolates the device under test (DUT) for exceptional common-mode rejection and signal fidelity, making it ideal for wide-bandgap semiconductor testing (SiC, GaN) and power electronics development.

The system compensates for thermal drifts and gain errors to ensure uncompromising signal accuracy across demanding measurement applications.

Key Features

• 200 MHz Bandwidth with ZISO-B902 included
• Galvanic isolation via power-over-fiber-optic architecture
• Common-mode rejection ratio (CMRR) >90 dB at 1 GHz
• ±3 kV differential input range with offset control
• ±60 kV common-mode voltage range
• Dual connectivity with Rohde & Schwarz probe interface and SMA connector
• Includes ZISO-Z301 probe tip for optimal CMRR performance
• Thermal drift and gain error compensation

Applications

• Wide-bandgap semiconductor testing (SiC, GaN devices)
• Inverter and motor drive development
• High-voltage power electronics analysis
• High-side gate drive measurements on complementary switching circuits
• Fast switching environment characterization

Included Accessories

• Rohde & Schwarz RT-ZISO Isolated probing system
• ZISO-B403 3 m Cable
• ZISO-B902 200 MHz Bandwidth Module
• ZISO-Z301 Probe Tip
• Carrying case
• Operating manual
• Probe stand
• Interface cable
• SMA to BNC adapter
• External DC power supply for standalone operation
