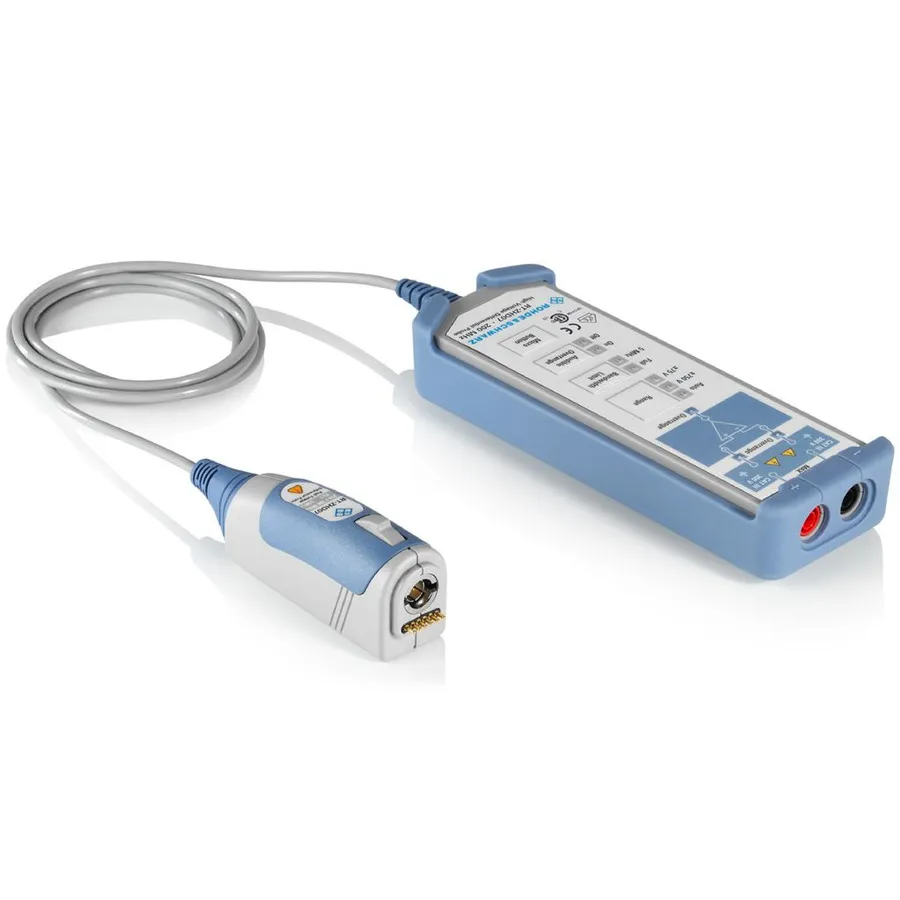

Rohde & Schwarz RT-ZHD60 is an active differential probe with 100 MHz bandwidth and ±6,000 V range, designed for safe high-voltage measurements on grounded oscilloscopes.
Product details
| Model | RT-ZHD60 |
| Manufacturer | Rohde & Schwarz |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZHD60 is a high-voltage differential probe designed for safely measuring high-voltage floating circuits using a grounded oscilloscope. It extends measurement capabilities for electronic power converters, inverters, motor speed controls, switch-mode power supplies, and similar applications. The probe conforms to safety requirements for CAT III measurement instruments and pollution degree 2 per IEC 61010-031.
Key Features
- Bandwidth: 100 MHz
- Dynamic range: ±6,000 V with 100:1/1000:1 attenuation
- Continuous voltage: 1,000 V RMS (CAT III)
- DC input resistance (differential): 40 MΩ
- DC input capacitance (differential): 2 pF
Included Accessories
- RT-ZHD60 active differential probe
- Carrying case
- Probe clips: pince clip, safety alligator clips, test clips (black and red pairs)
- Leads: 17 cm and 100 cm lengths (black and red pairs)
- Spade terminals (black and red)
- User manual and data sheet
- Calibration certificate with documented values
- Two hinged ferrite cores with opening key
Specifications
| Bandwidth | 100 MHz |
| Attenuation | 100X, 1000X |
| Input Capacitance | 2 pF |
| Maximum Input Voltage | 6000 V |
| Input Impedance | 40 MΩ |
| Cable Length | 1.5 m |
| Series | RT-Zxx Series |
| Alternate Product Number | 1800.2007.02 |
| Safety Rating | CAT1 | CAT2 | CAT3 |
| Series Compatibility | RTM3000, RTA4000, MXO 4, RTE and RTO Series |
| Type | Active Differential Probe |
