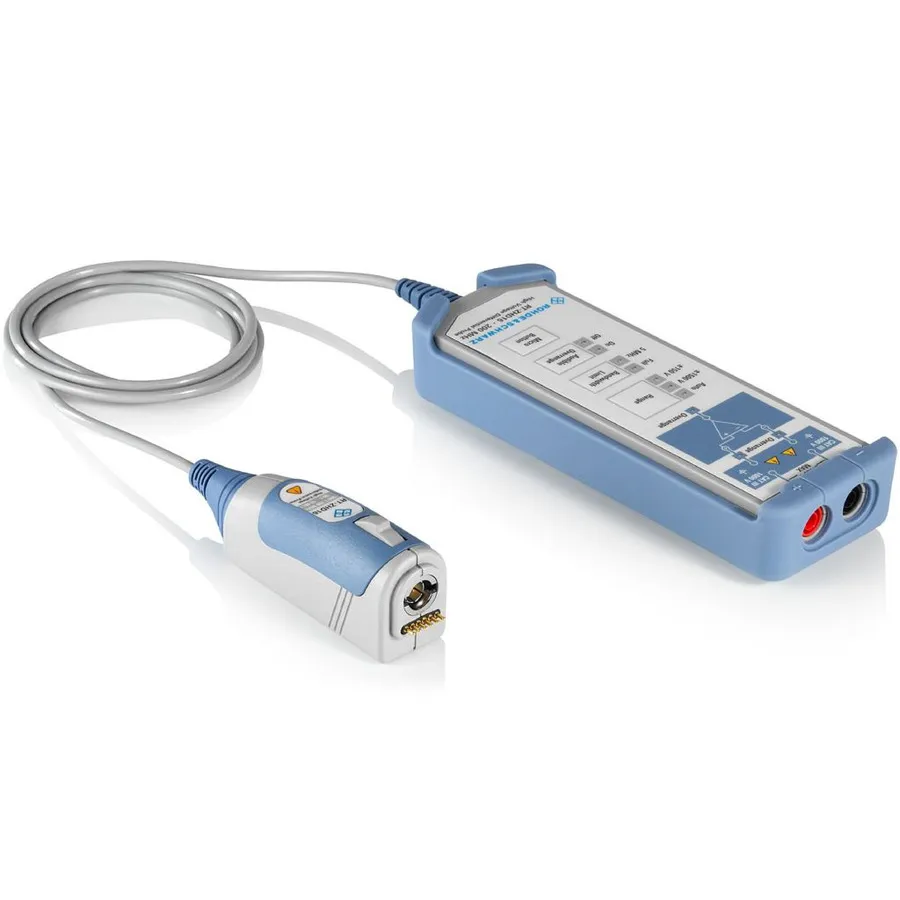

Rohde & Schwarz RT-ZHD07 High Voltage Differential Probe
Request a quote
Rohde & Schwarz RT-ZHD07 is a 200 MHz active differential probe with 750 V peak dynamic range and switchable 25:1/250:1 attenuation, rated for CAT III.
Product details
| Model | RT-ZHD07 |
| Manufacturer | Rohde & Schwarz |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZHD07 is an active high-voltage differential probe designed to safely measure high-voltage floating circuits using a grounded oscilloscope. The probe extends oscilloscope measurement capabilities for analyzing electronic power converters, inverters, motor speed controls, and switched-mode power supplies. It meets CAT III measurement safety requirements and pollution degree 2 per IEC 61010-031.
Key Features
- 200 MHz bandwidth for detailed waveform capture
- 750 V peak dynamic range
- 300 V CAT III safety rating
- Switchable 25:1 and 250:1 attenuation settings
- 5 MΩ differential input impedance
- 2.0 pF differential input capacitance
- Micro button control
- R&S ProbeMeter integration
- Overrange indication
- Switchable bandwidth limiting
- Data memory for measurement logging
Applications
- High-voltage floating circuit measurements in power electronics
- Switching power supply testing and analysis
- Motor drive and inverter circuit analysis
- Power converter efficiency and distortion measurements
Included Accessories
- RT-ZHD07 high-voltage differential probe
- Soft carrying bag
- RT-ZA22 safety test leads
- RT-ZA24 accessory set
Specifications
| Bandwidth | 200 MHz |
| Attenuation | 25X, 250X |
| Input Capacitance | 2 pF |
| Maximum Input Voltage | 750 V |
| Input Impedance | 5 MΩ |
| Series | RT-Zxx Series |
| Alternate Product Number | 1800.2307.02 |
| Series Compatibility | MXO5 Series |
| Type | Differential Probe |
