Rohde & Schwarz RT-ZD20 Differential Broadband Probe

Overview

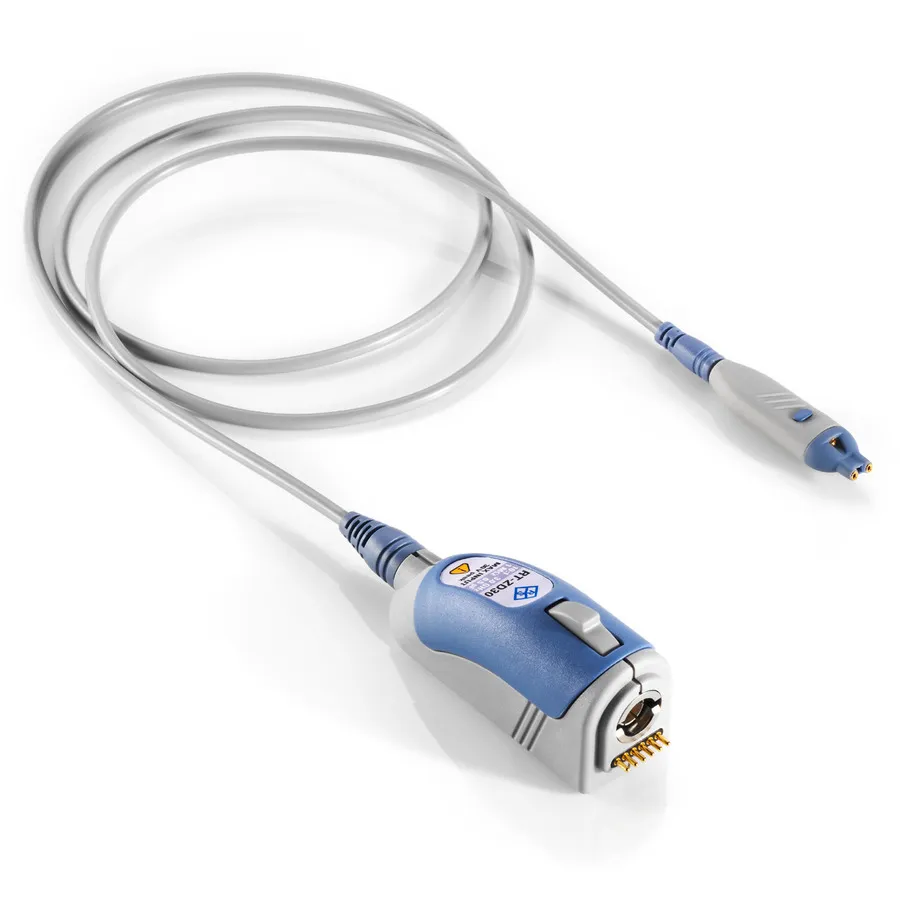

The Rohde & Schwarz RT-ZD20 is a differential broadband probe with 1.5 GHz bandwidth, providing universal measurement capabilities for high-speed and RF applications. The wide dynamic range (±5 V differential with ±5 V offset compensation, ±8 V common mode with ±22 V offset compensation) makes it suitable for measuring high-speed single-ended signals at DDR storage ports, symmetrically fed RF signals, and voltages in switching power supplies.

Key Features

• Bandwidth: 1.5 GHz
• Attenuation: 10:1
• Input impedance: 1 Megohm || 0.6 pF
• Differential voltage range: ±5 V (with ±5 V offset compensation)
• Common mode voltage range: ±8 V (with ±22 V offset compensation)
• R&S probe interface with ProbeMeter and micro button
• Cable length: 1.2 m
• Includes comprehensive accessory set

Included Accessories

• 10 signal pins, solder-in
• 4 signal pins, variable spacing
• 1 browser adapter
• 2 square pin adapters
• 2 flex adapters, solder-in (4 cm and 10 cm)
• 2 flex adapters, square pin (4 cm and 10 cm)
• 2 leads (6 cm each)
• 1 lead (15 cm)
• 2 mini clips and 2 micro clips
• Marker band kit
• Carrying case with foam inlay
