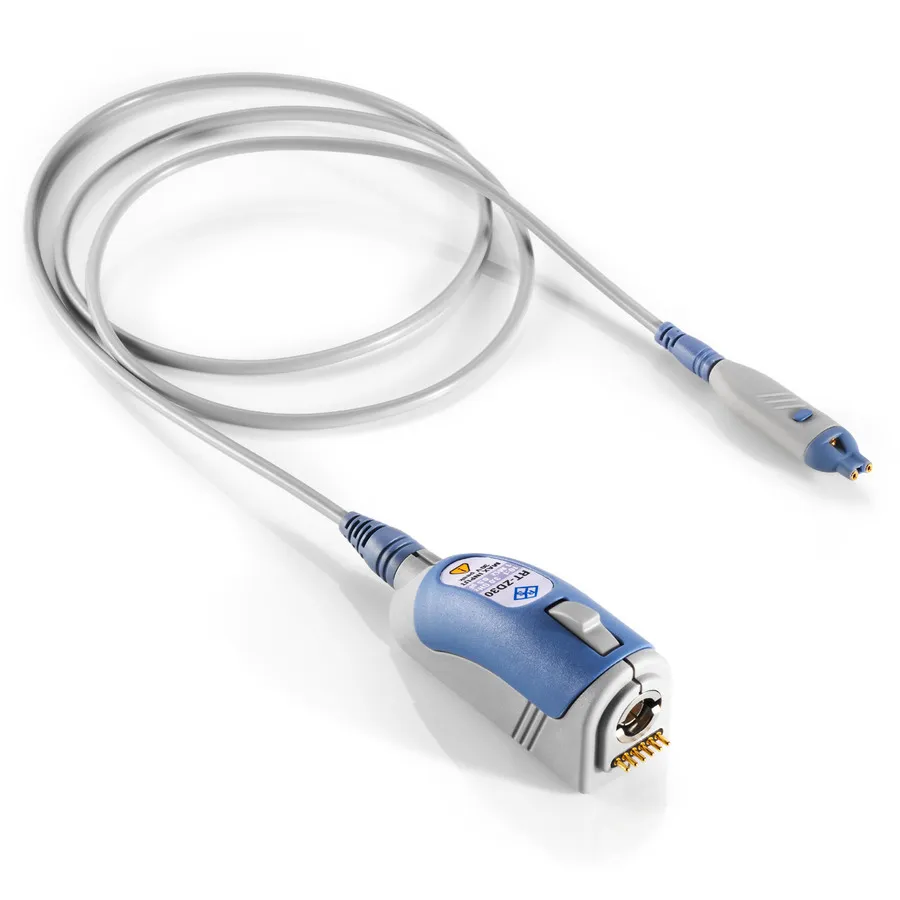

Rohde & Schwarz RT-ZD10 Differential Broadband Probe

Overview

The Rohde & Schwarz RT-ZD10 is an active differential broadband probe designed for measuring differential signals up to 1 GHz. Differential probes can be used for both single-ended and differential applications, measuring the voltage between any two test points without requiring one point to be at ground potential. The RT-ZD10 provides high common mode rejection ratio and low capacitive probe loading for signal fidelity.

Key Features

• Bandwidth: 1 GHz
• Attenuation: 10:1 (1 Megohm, 0.6 pF, 5 Vpeak) and 100:1 (1 Megohm, 0.3 pF) with external attenuator
• High common mode rejection ratio for accuracy with large common mode changes
• R&S probe interface and R&S ProbeMeter for DC voltage measurement at probe tip
• Micro button for remote control of base unit functions
• Cable length: 1.2 m
• Low capacitive loading for signal fidelity

R&S ProbeMeter

The ProbeMeter measures DC voltage directly at the probe tip with high precision, independent of oscilloscope settings, and displays the result on compatible Rohde & Schwarz oscilloscopes.

External Attenuator

The included R&S RT-ZA15 external attenuator permits measurement of voltages up to ±60 V DC / ±42.4 V AC (peak) at 1 GHz bandwidth.

Included Accessories

• 10 signal pins, solder-in
• 4 signal pins, variable spacing
• 1 browser adapter
• 2 square pin adapters
• 2 flex adapters, solder-in (4 cm and 10 cm)
• 2 flex adapters, square pin (4 cm and 10 cm)
• 2 leads (6 cm each)
• 1 lead (15 cm)
• 2 mini clips and 2 micro clips
• Marker band kit
• External attenuator (RT-ZA15)
• Adjustment tool
• Carrying case with foam inlay
