RIGOL RP7080S Active Probe, Single-Ended, 800 MHz
Request a quote
RIGOL RP7080S is an 800 MHz single-ended active probe with 100 kΩ input impedance, 1 pF capacitance, and four interchangeable probe heads for high-frequency measurements.
Product details
| Model | RP7080S |
| Manufacturer | RIGOL |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview

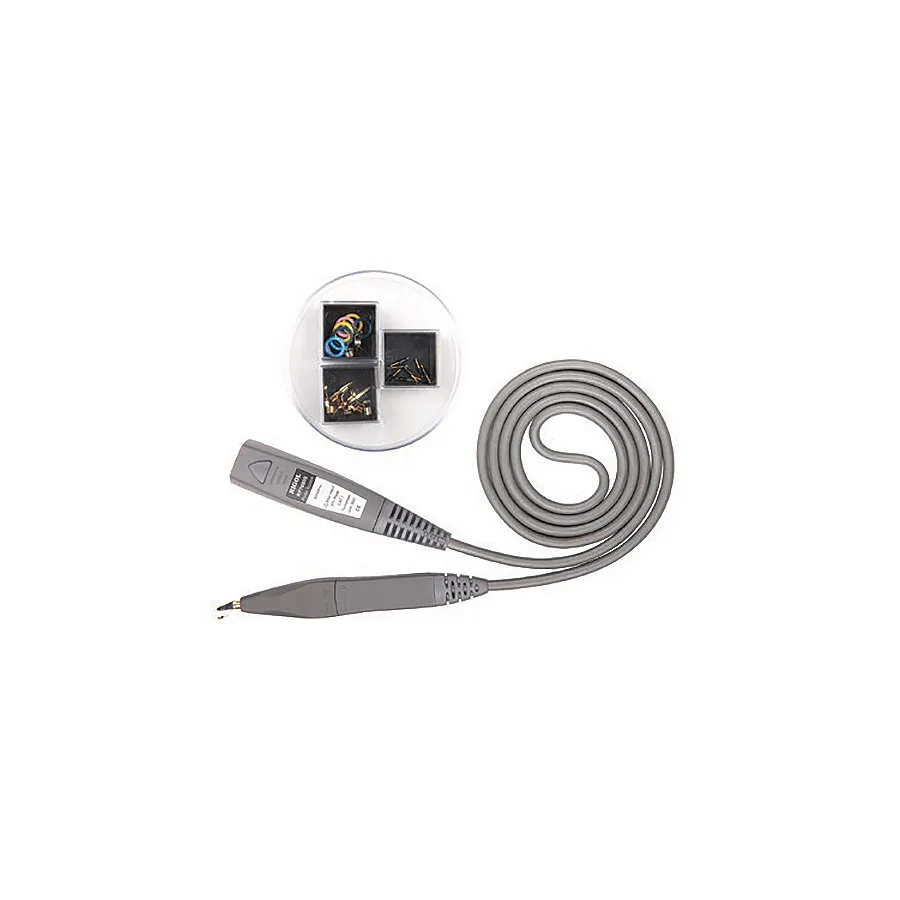

The RIGOL RP7080S is a single-ended active probe designed for high-frequency signal measurements. With 800 MHz bandwidth, it supports measurement of single-ended signals while providing excellent common mode rejection. The probe features a hand-held single-ended probe head with four different ground collar options (straight and curved variants in acuminate and dentiform designs) to accommodate various PCB layouts and test point spacing.
Key Features
- 800 MHz bandwidth for high-frequency measurements
- Single-ended active probe design
- Four interchangeable ground collar types: Straight/Curved Acuminate and Straight/Curved Dentiform
- 91 ohm probe tip for optimized impedance matching
- Replaceable probe tip extends service life
- Adjustable tip-to-ground collar spacing for various PCB layouts
- Includes marker rings (Yellow, Pink, Light Blue, Dark Blue) for color-coded identification
- Compatible with RIGOL oscilloscopes via auto-identification port
Included Accessories
- PCK100 Active Differential Probe Calibration Kit
- Hand-held Single-ended Probe Head
- 91 ohm Probe Tip
- Straight Acuminate Ground Collar
- Curved Acuminate Ground Collar
- Straight Dentiform Ground Collar
- Curved Dentiform Ground Collar
- Marker Rings (Yellow, Pink, Light Blue, Dark Blue)
- User's Guide RP7S-0601
- Probe Bag
- Storage Box
Specifications
| Bandwidth | 800 MHz |
| Attenuation | 10X |
| Input Capacitance | 1 pF |
| Maximum Input Voltage | 30 V |
| Input Impedance | 100 kΩ |
| Interface | BNC |
| Cable Length | 1.4 m |
| Series | RP7000S Series |
| Operating Temperature Range | 5 to 40°C |
| Risetime | 465 ps |
| Safety Rating | CAT1 |
| Series Compatibility | DS6000 Series, MSO4000 Series, DS4000 Series, 6000 Series, 7000 Series, 8000 Series |
| Type | Active Probe |
