RIGOL PHA1150 High-Voltage Differential Probe
Request a quote
RIGOL PHA1150 is a high-voltage differential probe with 100 MHz bandwidth and dual attenuation (50X/500X), supporting measurements up to 1500V with standard BNC output.
Product details
| Model | PHA1150 |
| Manufacturer | RIGOL |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview

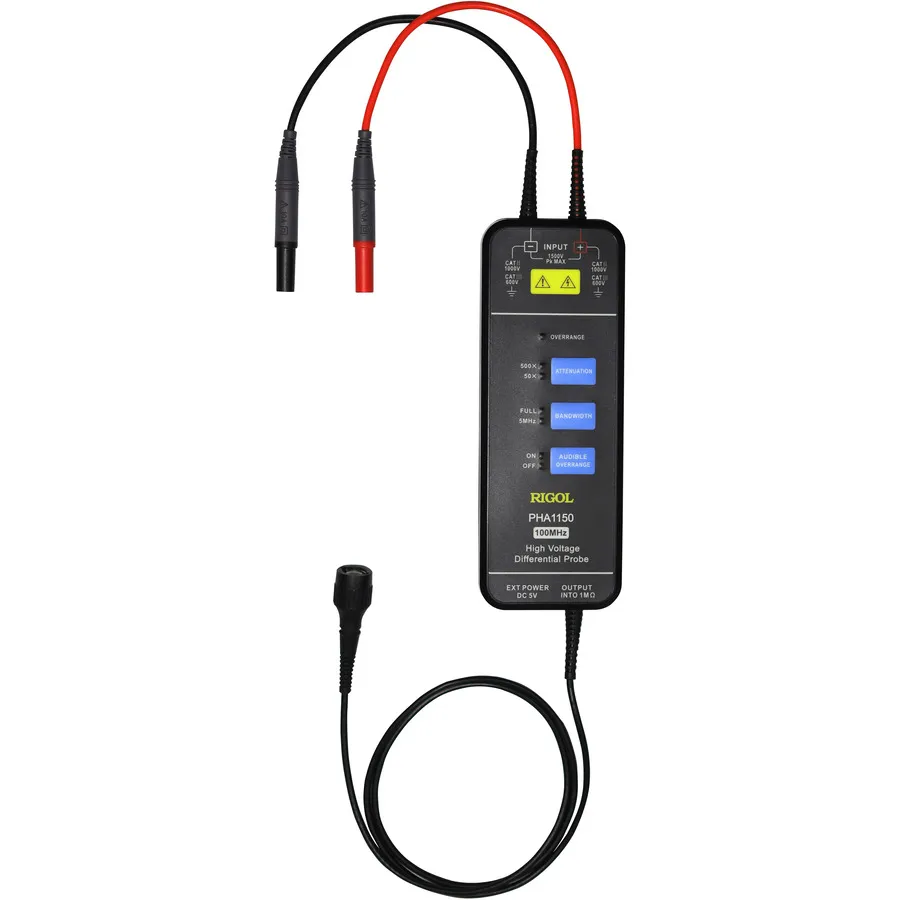

The PHA1150 is a high-voltage differential probe designed to convert high input voltages into low voltages for measurement on oscilloscopes and waveform measuring instruments. It provides a standard BNC output terminal compatible with most manufacturers' equipment.
Key Features
- 100 MHz bandwidth for high-frequency signal measurement
- Two attenuation settings: 50X (150V DC+peak AC) and 500X (1500V DC+peak AC)
- 5 MHz bandwidth limit option for low-frequency signal measurement
- High input impedance and low input capacitance for accurate measurements
- Strong common-mode noise rejection
- Standard BNC output terminal compatible with most waveform measuring instruments
- Audible alarm beeper and visible indicator blinking for alarm conditions
- Auto memory function to save working status before shutdown
Applications
- High-frequency waveform measurement
- Switching power supply testing (FET switching frequency analysis)
- High-voltage circuit analysis
- Common-mode noise rejection applications
Specifications
| Bandwidth | 100 MHz |
| Attenuation | 50X, 500X |
| Input Capacitance | 4 pF |
| Maximum Input Voltage | 1500 V |
| Input Impedance | 10 MΩ |
| Interface | BNC |
| Cable Length | 1 m |
| Series | PHA Series |
| Operating Temperature Range | 0 to 50°C |
| Risetime | 3.5 ns |
| Type | Differential Probe |
