Pico Technology TA044 Active Differential Probe
Request a quote
Pico Technology TA044 active differential probe with 70MHz bandwidth, 1:100/1000 attenuation ratio, and 7000V maximum input for high-voltage differential measurements.
Product details
| Model | TA044 |
| Manufacturer | Pico Technology |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview

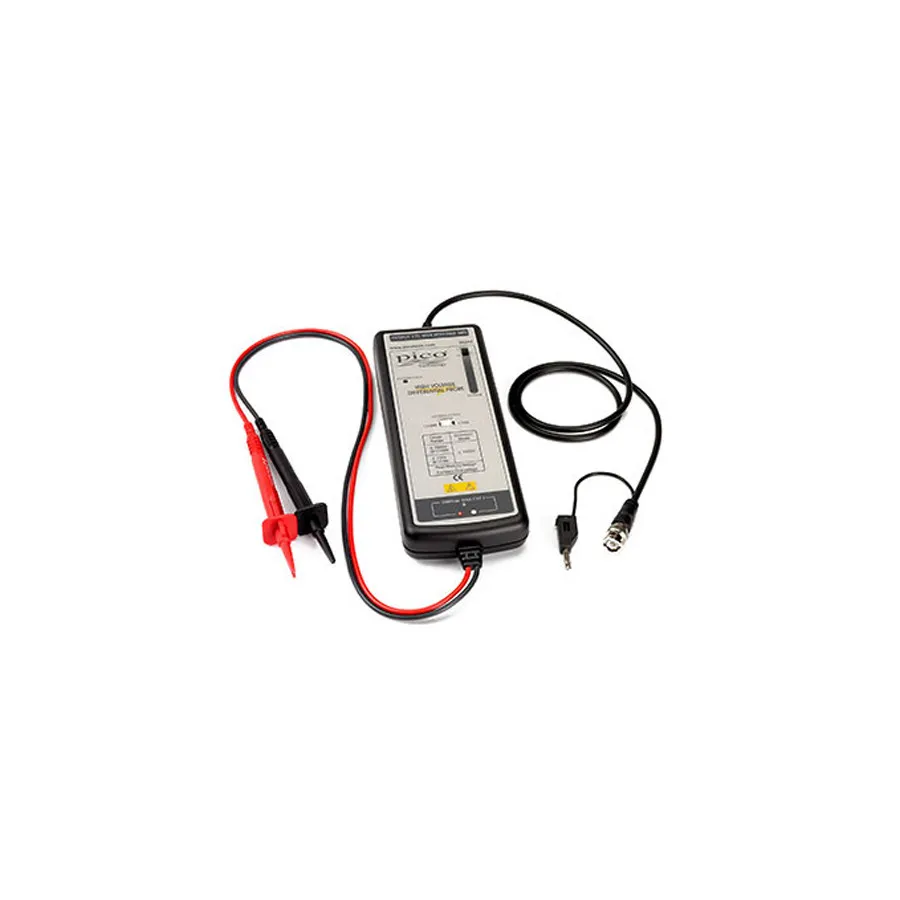

The Pico Technology TA044 is an active differential probe designed for high common-mode voltage measurement applications up to ±7000V DC plus peak AC. This probe extends the functionality of standard single-ended input oscilloscopes to enable safe and accurate high-voltage differential measurements.
The TA044 is suitable for power circuit testing and acquisition of low-speed balanced differential signals found in serial communications buses. Spring hooks supplied with the probe are rated for 1000V operation.
Key Features
- Frequency range: DC to 70MHz
- Attenuation ratio: 1:100 or 1:1000 selectable
- Input impedance: 10 Megohms || 10 pF each side to ground
- Common-mode rejection: -80 dB at 60Hz; -50 dB at 1MHz
- Accuracy: ±2%
- Input leads length: 60 cm
- BNC lead length: 90 cm
- Probe dimensions: 202 mm x 83 mm x 38 mm
Applications
- High-voltage differential measurement in power circuits
- Safe measurement of differential voltages up to ±7000V
- Balanced differential signal acquisition on serial communication buses
- Power electronic testing and analysis
Specifications
| Bandwidth | 70 MHz |
| Attenuation | 100X, 1000X |
| Input Capacitance | 10 pF |
| Maximum Input Voltage | 7000 V |
| Input Impedance | 10 MΩ |
| Interface | BNC |
| Cable Length | 0.6 m |
| Lead Length | 0.9 m |
| Operating Temperature Range | -10 to 40°C |
| Safety Rating | CAT1 |
| Type | Differential Probe |
