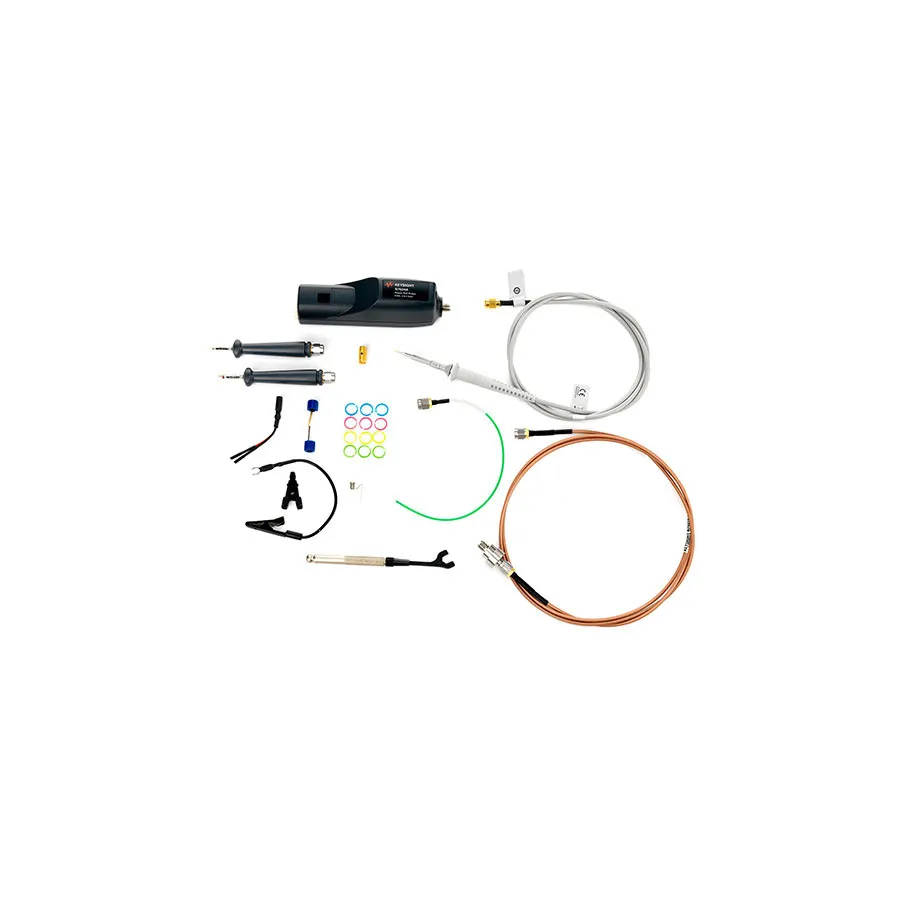

Keysight N7024A 6GHz Power Rail Probe
Request a quote
Keysight N7024A is a 6GHz power rail probe with 1:1 attenuation, ±15.25V offset range, and 50kΩ impedance for power integrity measurements.
Product details
| Model | N7024A |
| Manufacturer | Keysight |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Keysight N7024A is a 6GHz power rail probe designed for power integrity measurements on DC power rails. It provides millivolt sensitivity for measuring noise, ripple, and transients, making it ideal for applications with tight power supply tolerances. The probe is compatible with Keysight Infiniium oscilloscopes (S, 9000, 90000A, 90000X, V, Z, and UXR Series).
Key Features
- 6GHz bandwidth for detecting high-speed transients
- Low noise: adds only 30% to baseline oscilloscope noise
- Large offset range: ±15.25V for setting maximum oscilloscope sensitivity
- Large active signal range: ±600mV in addition to offset range
- Low DC loading: 50kΩ DC input impedance
- 1:1 attenuation ratio
Applications
- Power integrity measurements on DC power rails
- Periodic and random disturbances (PARD) measurement
- Static and dynamic load response analysis
- Programmable power rail response testing
- High-speed transient detection on clock and digital data lines
Specifications
| Bandwidth | 6 GHz |
| Attenuation | 1.3X |
| Maximum Input Voltage | 15.25 V |
| Input Impedance | 50 kΩ |
| Interface | AutoProbe |
| Cable Length | 1.2 m |
| Series Compatibility | S-Series, V-Series, Z-Series, Q-series |
| Type | Power Rail Probe |
