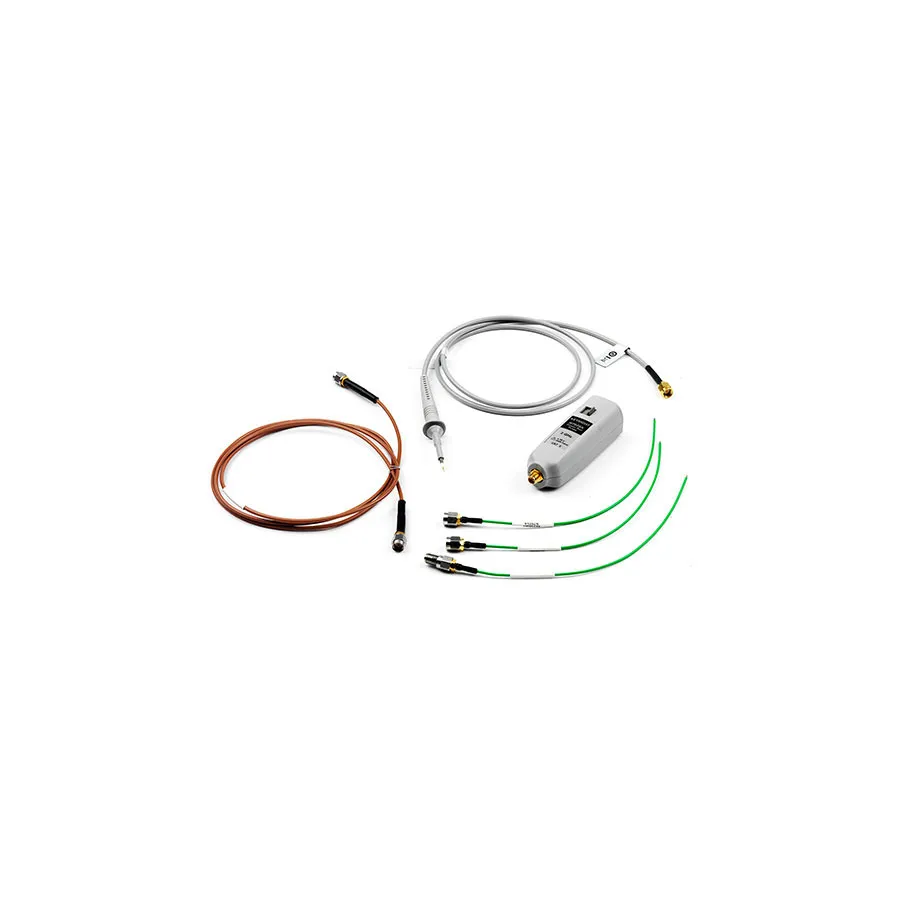

Keysight N7020A Power Rail Probe
Request a quote
Keysight N7020A 2 GHz power rail probe with low noise, large ±24 V offset range, and 50 kΩ DC input impedance for power integrity measurements.
Product details
| Model | N7020A |
| Manufacturer | Keysight |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The N7020A is a power rail probe designed for making power integrity measurements with millivolt sensitivity. It enables measurement of noise, ripple, and transients on DC power rails with tight tolerance requirements. The probe features low noise performance and minimal loading characteristics, compatible with multiple Keysight oscilloscope platforms.
Key Features
- 2 GHz bandwidth for detecting high-speed transients on power rails
- 1:1 attenuation ratio adds only 10% to baseline oscilloscope noise
- Large ±24 V offset range for precise centering on display
- ±850 mV active signal range for measuring power rail transitions
- 50 kΩ DC input impedance for minimal loading
- Compatible with Keysight InfiniiVision 3000T, 4000 X, 6000 X, and Infiniium S and 9000 Series oscilloscopes
Applications
- Power integrity and noise measurement on DC power rails
- Periodic and random disturbance (PARD) analysis
- Static and dynamic load response measurement
- Programmable power supply response characterization
- High-speed transient detection affecting digital signals and clocks
Specifications
| Bandwidth | 2 GHz |
| Attenuation | 1.1X |
| Maximum Input Voltage | 24 V |
| Input Impedance | 50 kΩ |
| Interface | AutoProbe |
| Cable Length | 1.2 m |
| Series Compatibility | S-Series, 9000 Series, 3000A Series, 6000 X-Series, 4000 X-Series, 3000T Series, 3000A X-Series, EXR Series, MXR Series |
| Type | Power Rail Probe |
