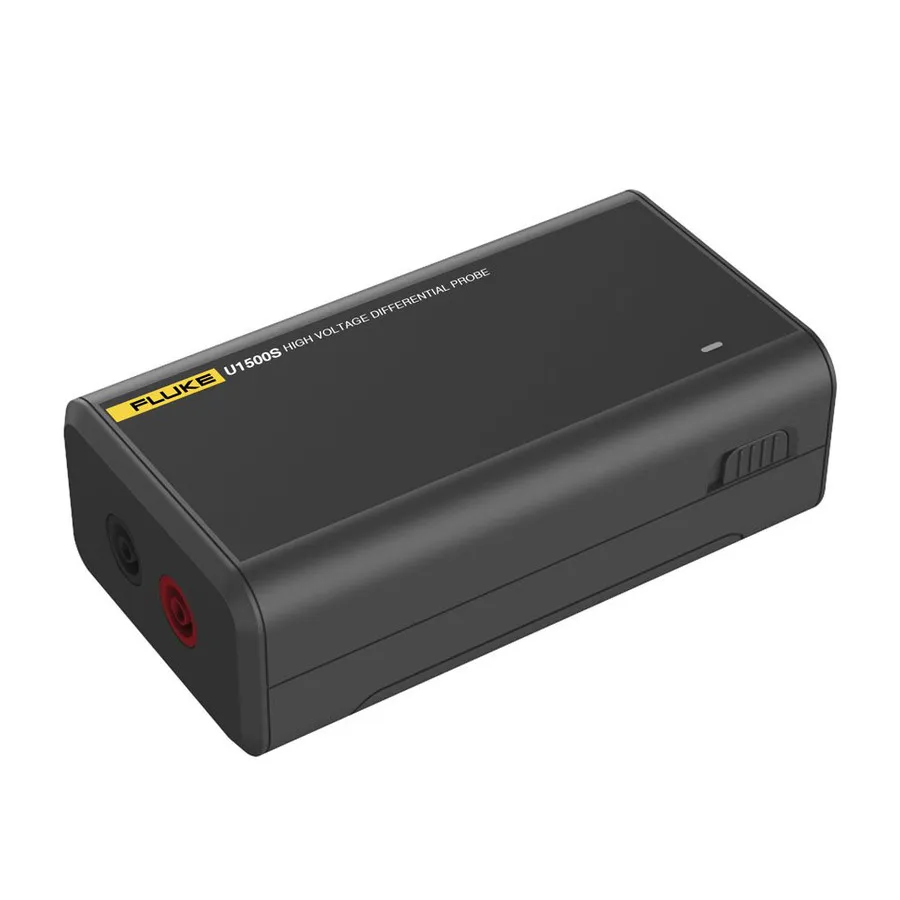

Fluke U1500S/APC Differential Voltage Probe
Request a quote
Fluke U1500S/APC differential voltage probe for measuring AC and DC voltages up to 1500V with 100 kHz bandwidth and 0.1% accuracy.
Product details
| Model | U1500S/APC |
| Manufacturer | Fluke |
| Category | Active & Differential Probes |
| Availability | Made to order |
Description
Overview
The Fluke U1500S/APC is a high-voltage differential probe designed for safely measuring DC bus bars up to 1.5 kV and connecting to instrument voltage inputs. It delivers precise measurements with 0.1% accuracy and allows voltage scaling within your instrument to provide results in real units.
Key Features
- Maximum voltage: 1,000V AC RMS continuous, 1,500V DC
- Bandwidth: 100 kHz
- Input Impedance: 2 MΩ / < 10 pF
- Scale: 4 mV/V
- Common Mode Rejection Ratio: 60 dB at 50 Hz
- 4mm input terminals (primary) and BNC output terminal (secondary)
- Safety rated CAT III 1000 V, CAT IV 600 V DC
- Includes BNC to 4mm banana plug adapter on 1.6 m lead
- Powered by 4 x AA alkaline batteries (IEC LR6)
Applications
- High-voltage DC bus measurement and troubleshooting
- Laboratory and field testing of power systems
- Oscilloscope measurements up to 1500V
Specifications
| Bandwidth | 100 kHz |
| Input Capacitance | 10 pF |
| Maximum Input Voltage | 1500 V |
| Input Impedance | 2 MΩ |
| Interface | BNC |
| Lead Length | 1.6 m |
| Operating Temperature Range | -10 to 50°C |
| Safety Rating | CAT3 | CAT4 |
| Type | Differential Probe |
