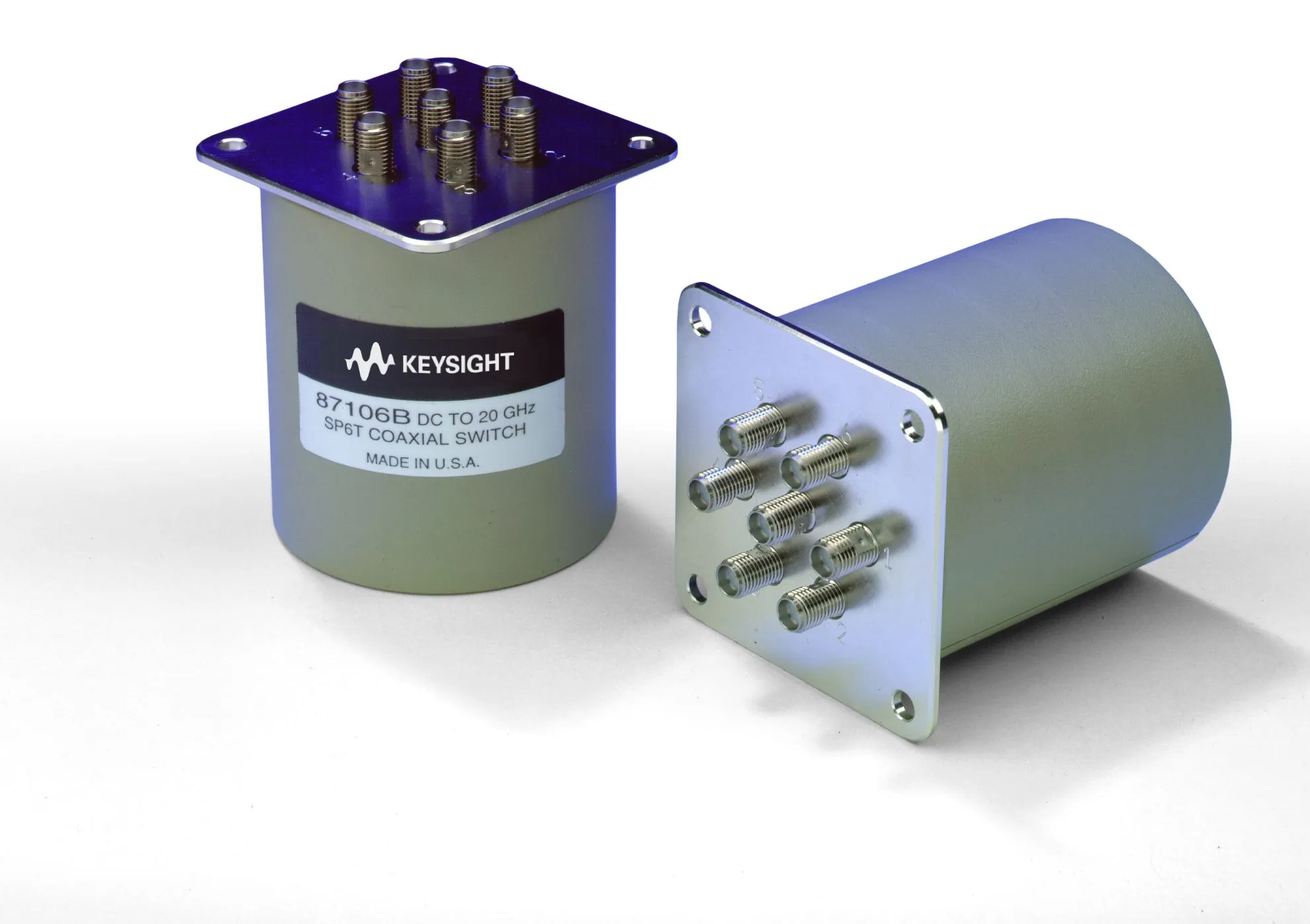

Keysight 87106B Multiport Coaxial Switch
Request a quote
Keysight 87106B is a dc to 20 GHz SP6T multiport coaxial switch with 10 million cycle life and greater than 90 dB isolation for automated test systems.
Product details
| Model | 87106B |
| Manufacturer | Keysight |
| Category | Transmitters |
| Availability | Made to order |
Description
Overview
The Keysight 87106B is a dc to 20 GHz SP6T terminated multiport coaxial switch designed for high-performance automated test systems, signal routing, and signal monitoring applications. The switch combines excellent RF repeatability with exceptional long-term reliability through magnetic latching design and rigorous manufacturing specifications.
Key Features
- Configuration: SP6T (single-pole, six-throw) with terminated ports
- Frequency range: dc to 20 GHz
- Exceptional RF repeatability: guaranteed 0.03 dB repeatability up to 5 million cycles
- Long operational life: 10 million switching cycles
- Superior isolation: typically greater than 90 dB to 26.5 GHz
- Magnetic latching design for low power consumption
- Opto-electronic indicators and interrupts
- TTL/5V CMOS compatible control (optional)
Applications
- Automated test and measurement (ATE) systems
- Signal routing and multiplexing
- Signal monitoring and surveillance applications
- RF/microwave system testing and validation
Specifications
| 87106B | dc to 20 GHz, SP6T Terminated |
