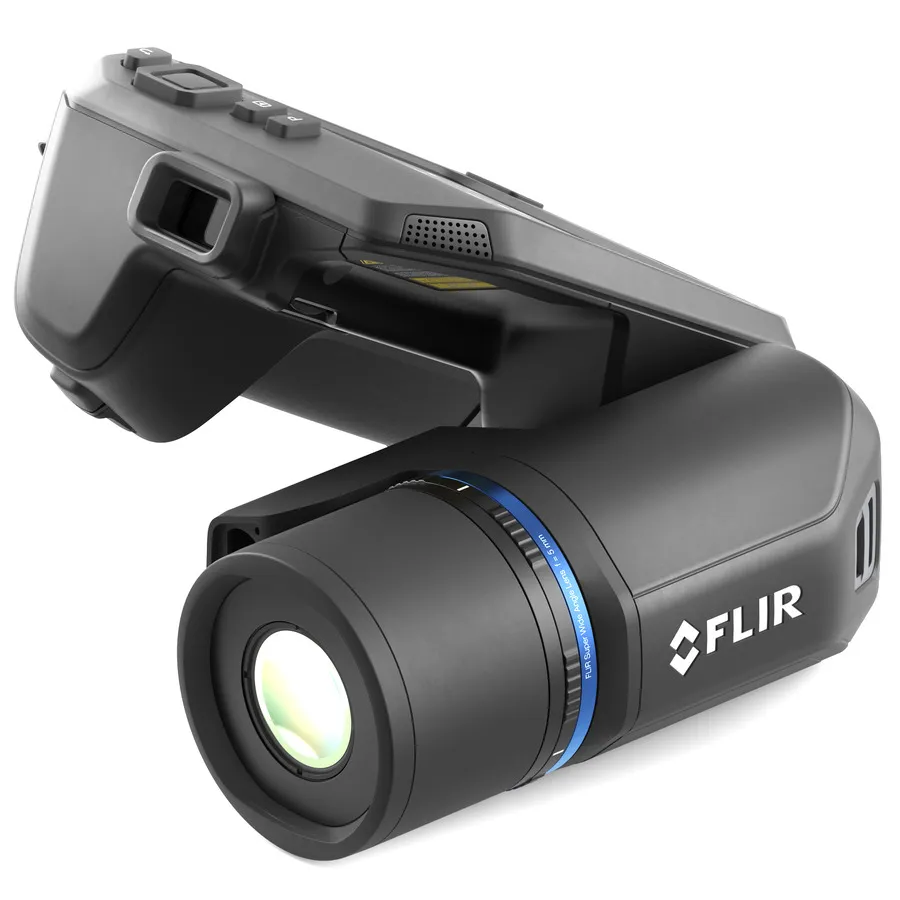

Teledyne FLIR T840-80 Thermal Camera

Overview

The Teledyne FLIR T840-80 is a professional thermal imaging camera designed for comprehensive large-scale inspections. With 464x348 thermal resolution and an ultra-wide 80° lens, it provides exceptional field of view for surveying expansive equipment and areas with minimal repositioning. The integrated eyepiece viewfinder and bright 4-inch color LCD display enable comfortable operation throughout long inspection sessions, while the 180° rotating optical block offers flexible positioning in any installation environment.

Key Features

• 464x348 pixel thermal resolution for detailed temperature imaging
• 80° ultra-wide lens for maximum field of view coverage
• 180° rotating optical block for flexible and ergonomic positioning
• Integrated eyepiece viewfinder with bright 4-inch color LCD display
• Temperature measurement range from -20°C to +1500°C
• FLIR Vision Processing, MSX, and UltraMax image enhancement technologies
• FLIR Ignite automatic image uploading directly from camera
• Rapid reporting features for efficient field documentation
• Ergonomic design for extended comfortable use
• Available FlexView dual field of view lens option for instant zoom capability

Applications

• Large electrical switchyard and distribution center inspections
• Power plant thermal surveys and condition assessment
• Comprehensive industrial facility thermal audits
• Building envelope and HVAC system thermography
• Preventive maintenance programs for critical infrastructure
