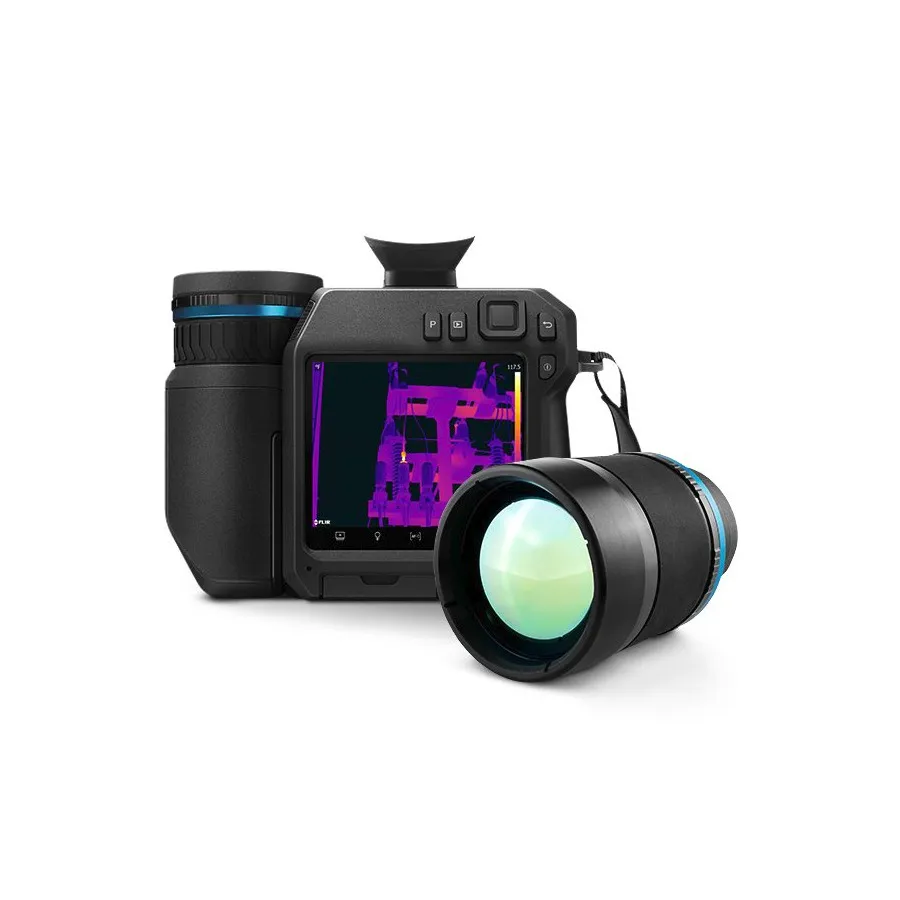

Teledyne FLIR FLIR T840-24-42 Thermal Camera
Request a quote
Teledyne FLIR T840-24-42 thermal camera with 464×348 IR resolution, integrated viewfinder, and 24/42° lens options for flexible field-of-view thermal imaging.
Product details
| Model | FLIR T840-24-42 |
| Manufacturer | Teledyne FLIR |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview
The Teledyne FLIR T840-24-42 is a thermal imaging camera engineered for professionals conducting comprehensive equipment inspections indoors and outdoors. Its integrated eyepiece viewfinder and bright 4-inch color LCD display enable effective operation in bright ambient light, while the 180° rotating lens platform and thoughtful ergonomic design support rapid diagnosis of equipment failures in confined spaces. The wide-angle to medium-telephoto lens range provides flexible field-of-view options for diverse inspection scenarios.
Key Features
- 464 × 348 (161,472 pixels) IR resolution
- Integrated eyepiece viewfinder for bright/outdoor use
- 4-inch color LCD display
- 180° rotating lens platform
- Wide-angle to medium telephoto lens range (24/42°)
- Laser pointer
- Two programmable buttons
- 7.5 – 14.0 µm spectral range
- Touchscreen keyboard with predefined list input option
Applications
- Electric utility equipment inspections
- Professional thermography surveys
- Diagnosis of failing components in hard-to-reach areas
- Outdoor inspections in bright light conditions
- Wide-area thermal scans with flexible telephoto capability
Specifications
| Resolution | 464 x 348 |
| Sensitivity | 30 mK |
| Maximum Temperature | 2000°C |
| Minimum Temperature | -40°C |
| Field of View | 24, 42° |
| Zoom | 1-6x |
| IP Rating | IP54 |
| Display Size | 4 LCD |
| Series | T840 Series |
