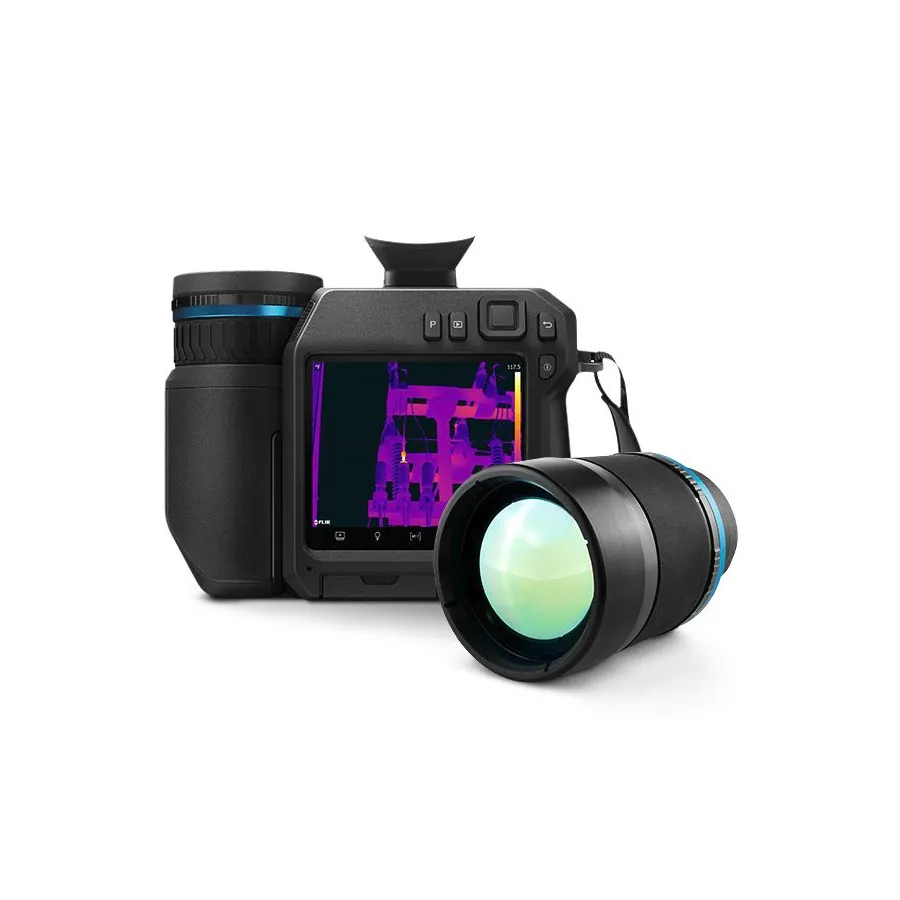

FLIR T840-14-NIST Thermal Camera
Request a quote
FLIR T840-14-NIST NIST-calibrated thermal camera with 464×348 resolution, eyepiece viewfinder, and 180° rotating lens for certified diagnostics.
Product details
| Model | FLIR T840-14-NIST |
| Manufacturer | Teledyne FLIR |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview
The FLIR T840-14-NIST is a NIST-calibrated professional thermal imaging camera designed for utility and field thermography professionals requiring certified temperature measurements. The integrated eyepiece viewfinder combined with a bright 4" LCD display provides flexibility for indoor and outdoor inspections in challenging lighting conditions. The 180° rotating lens platform and ergonomic design enable comfortable diagnostics of hard-to-reach equipment.
Key Features
- 464×348 thermal resolution for clear temperature imaging
- NIST calibration certification for certified temperature accuracy
- Integrated eyepiece viewfinder for outdoor viewing in bright conditions
- 4" color LCD display with high brightness for outdoor operation
- 180° rotating lens platform for access to difficult-to-reach areas
- 14° standard lens with optional 6° telephoto lens for distant measurements
- Ergonomic handheld design for extended field operations
Applications
- Electrical utility equipment inspections with certified measurements
- Power distribution diagnostics requiring NIST calibration
- Field thermography surveys with calibration documentation
- Certified equipment failure diagnostics
- Outdoor inspections in bright sunlight with verified accuracy
Specifications
| Resolution | 464 x 348 |
| Sensitivity | 30 mK |
| Maximum Temperature | 2000°C |
| Minimum Temperature | -40°C |
| Field of View | 14° |
| Zoom | 1-6x |
| IP Rating | IP54 |
| Display Size | 4 LCD |
| Series | T840 Series |
