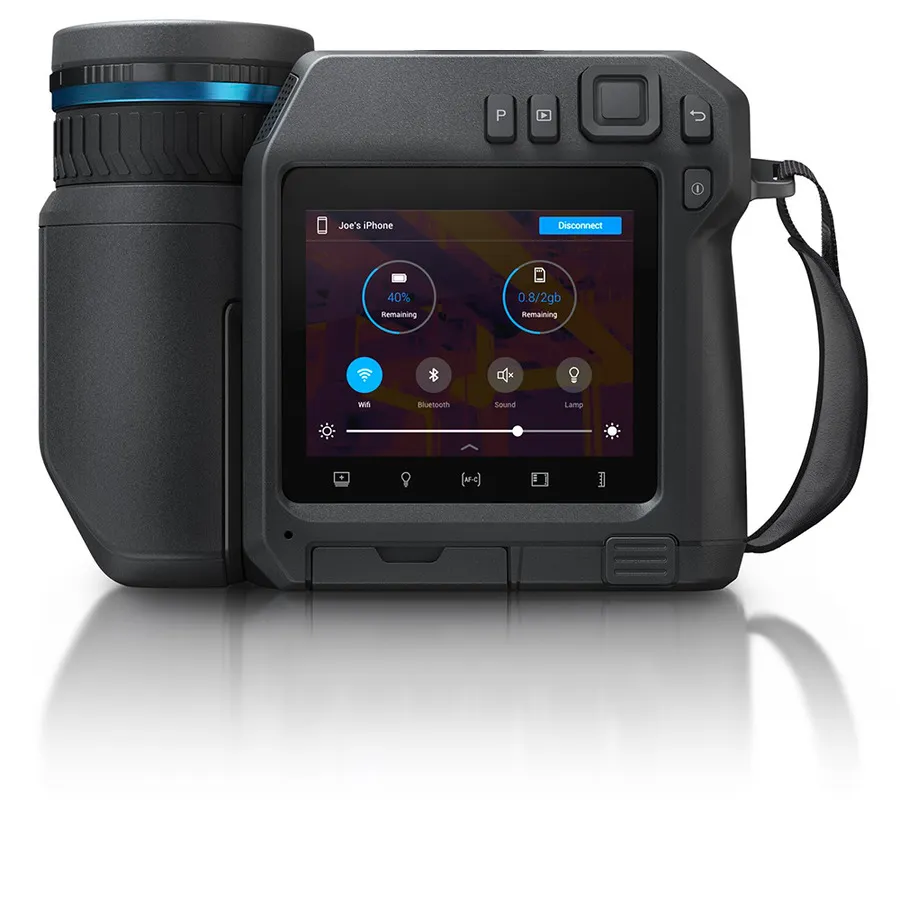

Teledyne FLIR T540-24-14 Thermal Camera
Request a quote
Teledyne FLIR T540-24-14 offers 464×348 thermal imaging with interchangeable 24° and 14° lenses, laser autofocus, and 180° rotating platform.
Product details
| Model | FLIR T540-24-14 |
| Manufacturer | Teledyne FLIR |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview
The Teledyne FLIR T540-24-14 is a portable thermal imaging camera with 464×348 pixel native resolution for diagnosing electrical and mechanical issues in hard-to-reach areas. Equipped with interchangeable 24° and 14° lenses, laser-assisted autofocus, and a 180° rotating platform, it delivers accurate temperature measurements for troubleshooting and detailed analysis.
Key Features
- 464×348 pixel resolution (161,472 measurement points)
- Interchangeable 24° and 14° AutoCal lenses
- Laser-assisted autofocus with 1-Touch Level/Span
- 180° rotating optical block for angled measurements
- 4-inch LCD display with capacitive touchscreen
- Ergonomic design for comfortable handheld operation
Applications
- Electrical and mechanical system troubleshooting
- Condition-based maintenance and diagnostics
- Thermal inspection and anomaly detection
- Hard-to-reach area surveying and diagnostics
Specifications
| Resolution | 464 x 348 |
| Sensitivity | 30 mK |
| Maximum Temperature | 1500°C |
| Minimum Temperature | -20°C |
| Field of View | 14 x 10, 24 x 18° |
| Zoom | 1-6x |
| IP Rating | IP54 |
| Display Size | 4 LCD |
| Series | T540 Series |
