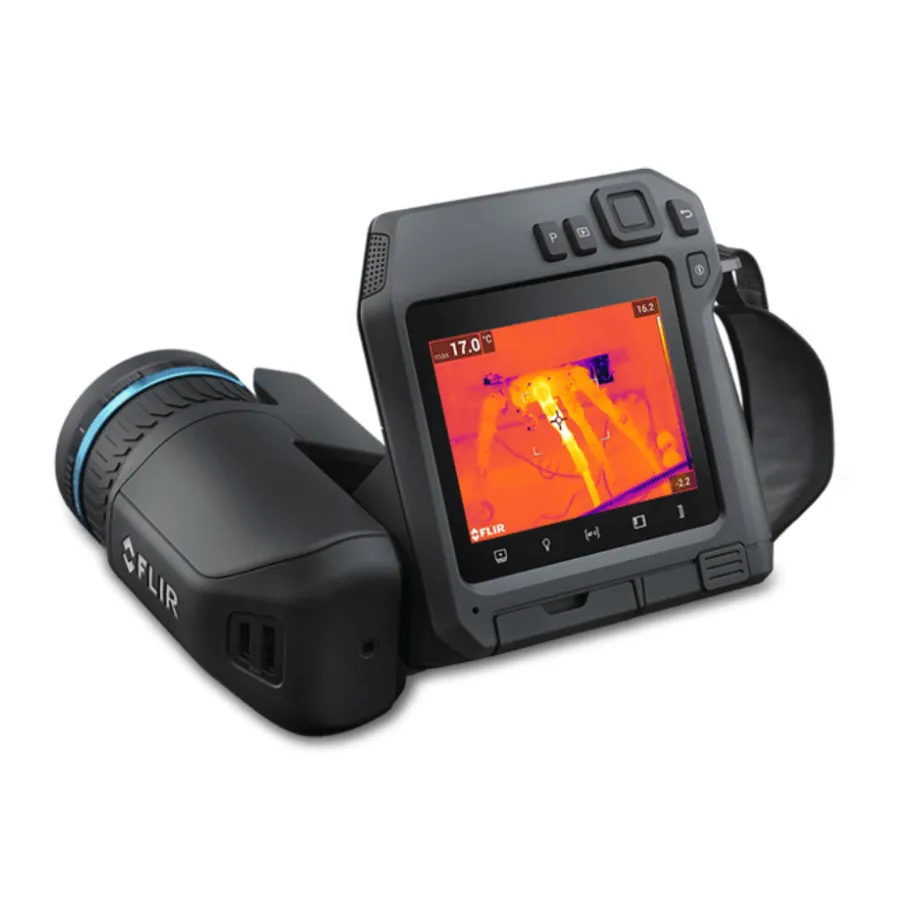

Teledyne FLIR T540-14-NIST Thermal Camera
Request a quote
Teledyne FLIR T540-14-NIST provides 464×348 thermal imaging with laser autofocus, 180° rotating lens, and NIST calibration for professional diagnostics.
Product details
| Model | FLIR T540-14-NIST |
| Manufacturer | Teledyne FLIR |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview
The Teledyne FLIR T540-14-NIST is a portable thermal imaging camera designed for non-contact temperature diagnostics in industrial, electrical, and mechanical systems. With 464×348 pixel native resolution and NIST calibration, it provides accurate temperature measurements for condition monitoring, R&D testing, and technical analysis.
Key Features
- 464×348 pixel native resolution (161,472 measurement points)
- Laser-assisted autofocus with 1-Touch Level/Span
- 180° rotating optical block for comfortable measurement at any angle
- 4-inch capacitive touchscreen display
- Intelligent, interchangeable AutoCal lenses
- Macro Mode for close-up analysis without lens changes
- NIST calibration for regulatory compliance
- Industry-leading 2-5-10 year warranty
Applications
- Electrical system troubleshooting and fault detection
- Mechanical system analysis and condition monitoring
- R&D testing and thermal anomaly discovery
- Building diagnostics and energy audits
- Inspection route automation for systematic surveys
Included Accessories
- Infrared camera with lens
- 2 Batteries
- Battery Charger
- Hard Transport Case
- Front Lens Cap
- Lanyards
- Power Supplies
- Printed Documentation
- SD Card (8 GB)
- Cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
- FLIR Thermal Studio Pro license (3-month subscription)
Specifications
| Resolution | 464 x 348 |
| Sensitivity | 40 mK |
| Maximum Temperature | 1500°C |
| Minimum Temperature | -20°C |
| Field of View | 14 x 10° |
| Zoom | 1-6x |
| IP Rating | IP54 |
| Display Size | 4 LCD |
| Series | T540 Series |
| Accuracy | 2°C |
| Frequency | 30 Hz |
