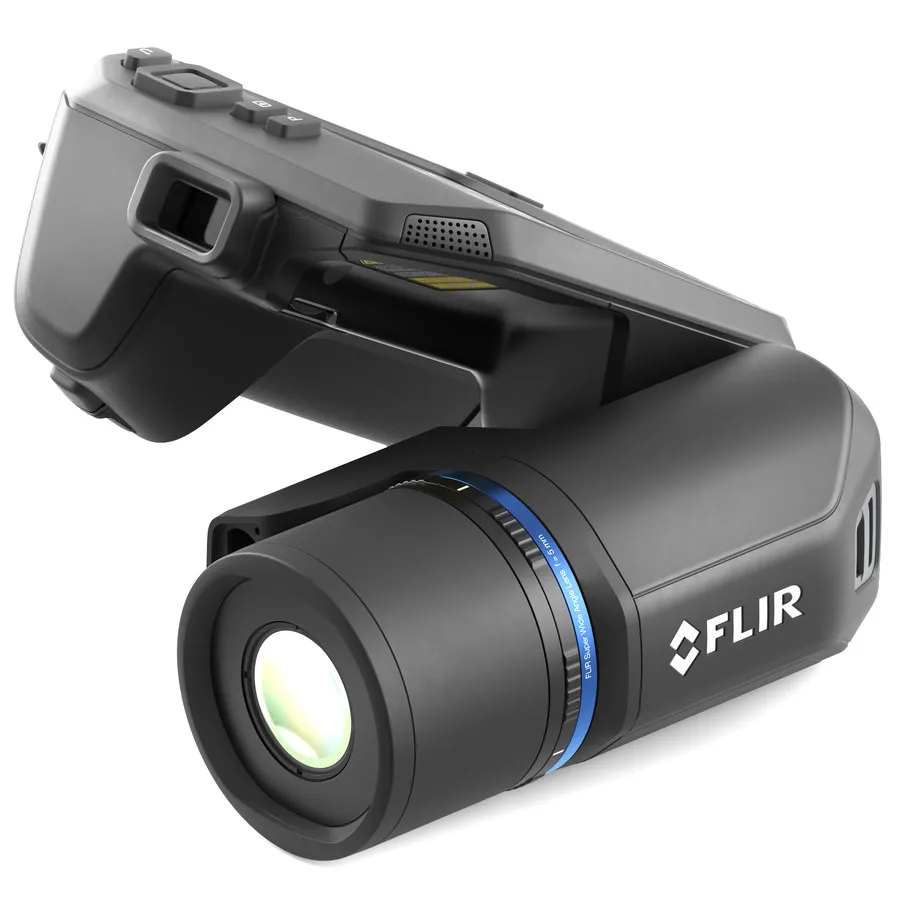

Teledyne FLIR T530-80 Thermal Camera

Overview

The Teledyne FLIR T530-80 is a professional thermal imaging camera designed for quick and accurate troubleshooting of hot spots and equipment faults across a wide area. With its 80-degree wide-angle lens and 180° rotating optical block, it enables users to capture comprehensive thermal images from various angles and distances. The bright 4-inch capacitive touchscreen and intuitive interface make field operation straightforward and efficient.

Key Features

• 180° rotating optical block for ergonomic positioning and flexible imaging angles
• 4-inch capacitive touchscreen with customizable programmable buttons
• 80-degree wide-angle lens for comprehensive area coverage
• 320x240 pixel native resolution with 161,472 measurement points
• Temperature measurement range from -20°C to +650°C
• Laser-assisted autofocus with continuous focus capability
• 1-Touch Level/Span automatic image enhancement
• Inspection Route mode for systematic surveys and pre-planned routes
• Industry-leading 2-5-10 year warranty

Applications

• Industrial electrical and mechanical equipment inspections
• Preventive maintenance and condition monitoring programs
• HVAC system diagnostics and performance assessment
• Building envelope and thermal imaging surveys
• Troubleshooting hard-to-reach equipment and components
