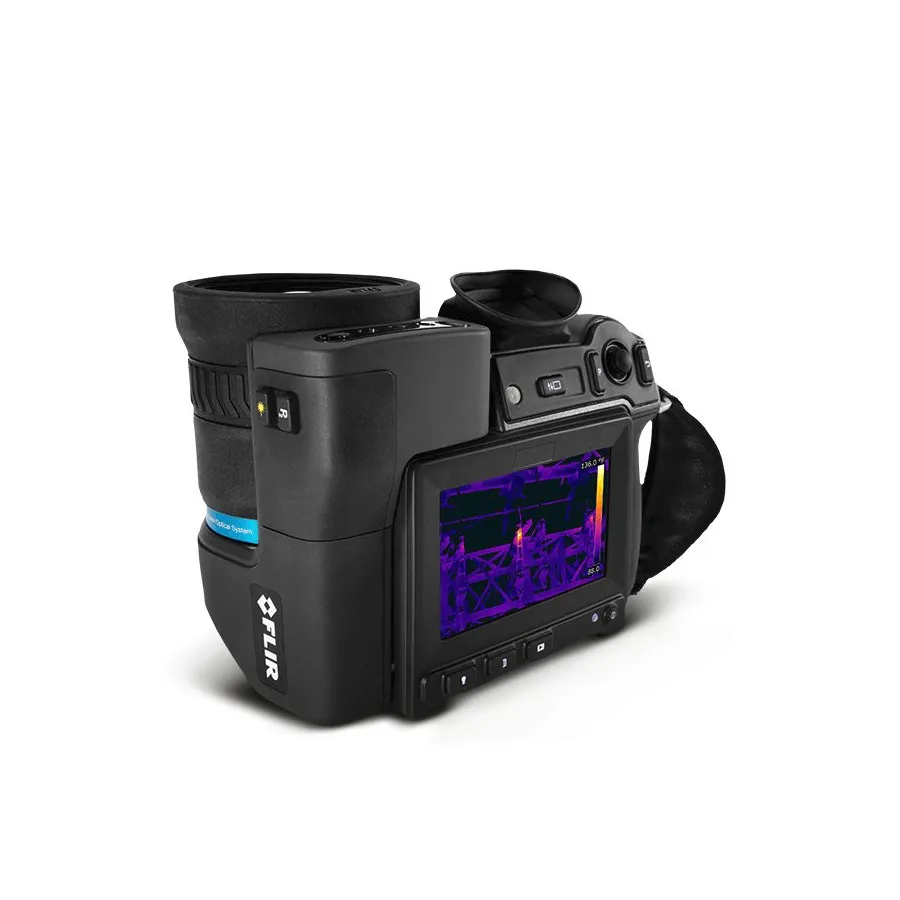

Teledyne FLIR T1020-12 Thermal Camera
Request a quote
FLIR T1020-12 professional thermal camera with up to 3.1 MP resolution, 12° narrow lens, exceptional thermal sensitivity, and advanced interface for long-range imaging.
Product details
| Model | FLIR T1020-12 |
| Manufacturer | Teledyne FLIR |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview
The Teledyne FLIR T1020-12 is FLIR's flagship thermal imaging camera, representing five decades of infrared expertise and innovation. Built for professionals demanding the highest performance, the T1020 features up to 3.1 MP thermal resolution via UltraMax technology, exceptional thermal sensitivity for detecting subtle temperature variations, and a sophisticated user interface for complex thermal applications. The 12° narrow-angle lens excels at long-distance imaging and detailed close-range diagnostics.
Key Features
- Up to 3.1 MP thermal resolution with UltraMax technology
- 1024×768 HD viewfinder with 12° narrow-angle lens
- Exceptional thermal sensitivity for subtle temperature detection
- Advanced user interface for complex thermal analysis
- Remarkable imaging range with long-distance capability
- Agile, intuitive design for streamlined operation
Applications
- Precision electrical system diagnostics and analysis
- Industrial equipment monitoring and predictive maintenance
- Building energy audits and thermal surveys
- Research and development thermal testing
- Quality control and process monitoring
- Long-distance infrastructure inspections
Specifications
| Resolution | 1024 x 768 |
| Sensitivity | 20 mK |
| Maximum Temperature | 2000°C |
| Minimum Temperature | -40°C |
| Field of View | 12 x 9° |
| Zoom | 1-8x |
| IP Rating | IP54 |
| Display Size | 4.3 LCD |
| Series | T1 Series |
