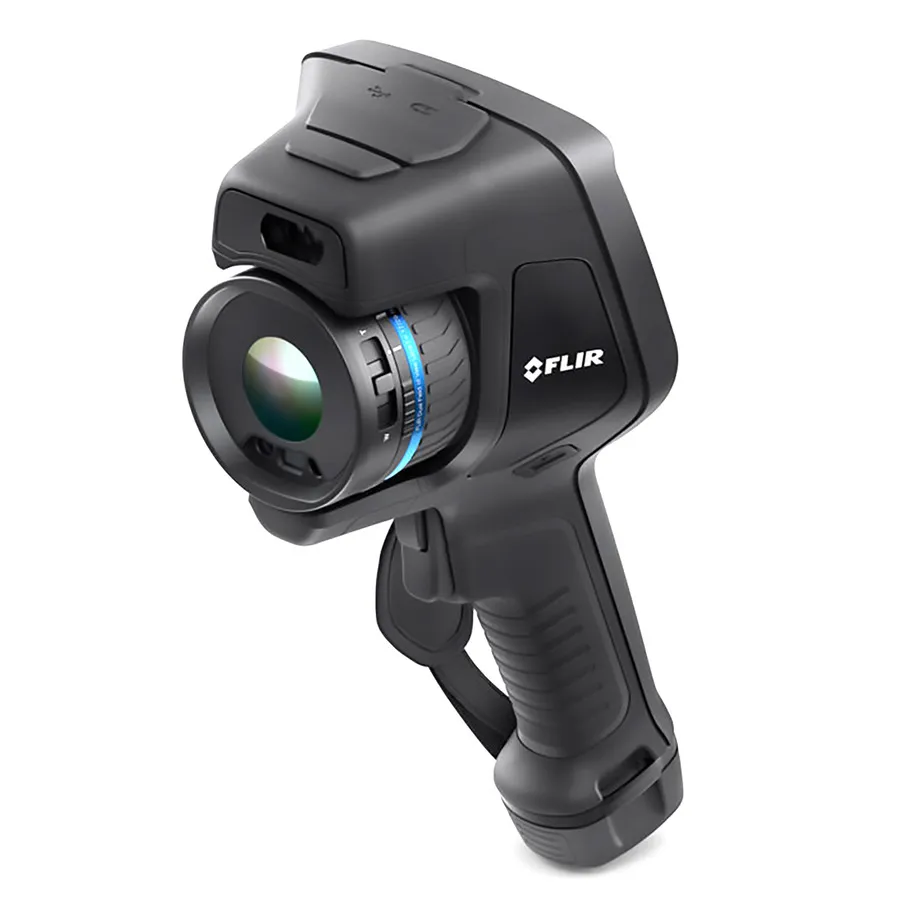

Teledyne FLIR E86 Dual FOV 24-42 Thermal Imaging Camera
Request a quote
Teledyne FLIR E86 dual field-of-view thermal camera provides 464×348 resolution with MSX and UltraMax imaging for superior thermal image clarity and detection accuracy.
Product details
| Model | E86 Dual FOV 24 -42 |
| Manufacturer | Teledyne FLIR |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview
The Teledyne FLIR E86 is a thermal imaging camera featuring dual field-of-view (24°-42°) technology and 464×348 pixel resolution. Designed for fast, accurate detection of hot spots and hidden anomalies on electrical and mechanical assets, the E86 combines interchangeable lenses with advanced image processing technologies to deliver crisp, vibrant thermal images suitable for industrial maintenance, diagnostics, and inspection work.
Key Features
- Dual field-of-view lens (24°-42°) for instant switching between wide-area and telephoto scanning
- 464×348 pixel thermal resolution with expanded temperature measurement range
- UltraMax® and MSX® imaging technologies for superior image clarity
- Interchangeable AutoCal™ lenses for near and distant target coverage
- FLIR Inspection Route for organizing surveys of large or multiple locations
- Cloud storage integration via FLIR Ignite for automatic image uploading and sharing
Included Accessories
- 2 batteries and charger with power supply
- Hard transport case
- USB Type-C to HDMI adapter
- USB cables (2.0 A to Type-C, Type-C to Type-C)
- 8 GB SD card
- Hand strap with brackets and carabiner
- Lens caps (front, and front/rear for extra lenses)
- Front protective shield with fasteners
- FLIR Thermal Studio software
Specifications
| Resolution | 464 x 348 |
| Sensitivity | 40 mK |
| Maximum Temperature | 1500°C |
| Minimum Temperature | -20°C |
| Field of View | 42 x 32, 24 x 18° |
| Zoom | 1-4x |
| Display Size | 4 LCD |
| Series | Exx Series |
| Alternate Product Number | 78523-1301 |
| Accuracy | 2 °C or 2% |
