Teledyne FLIR 90610-0202 A500 Standard Science Kit
Request a quote
Teledyne FLIR A500 thermal imaging camera with 464x348 IR resolution, 24-degree lens, WiFi connectivity, and macro mode for precise thermal analysis in research applications.
Product details
| Model | 90610-0202 |
| Manufacturer | Teledyne FLIR |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview

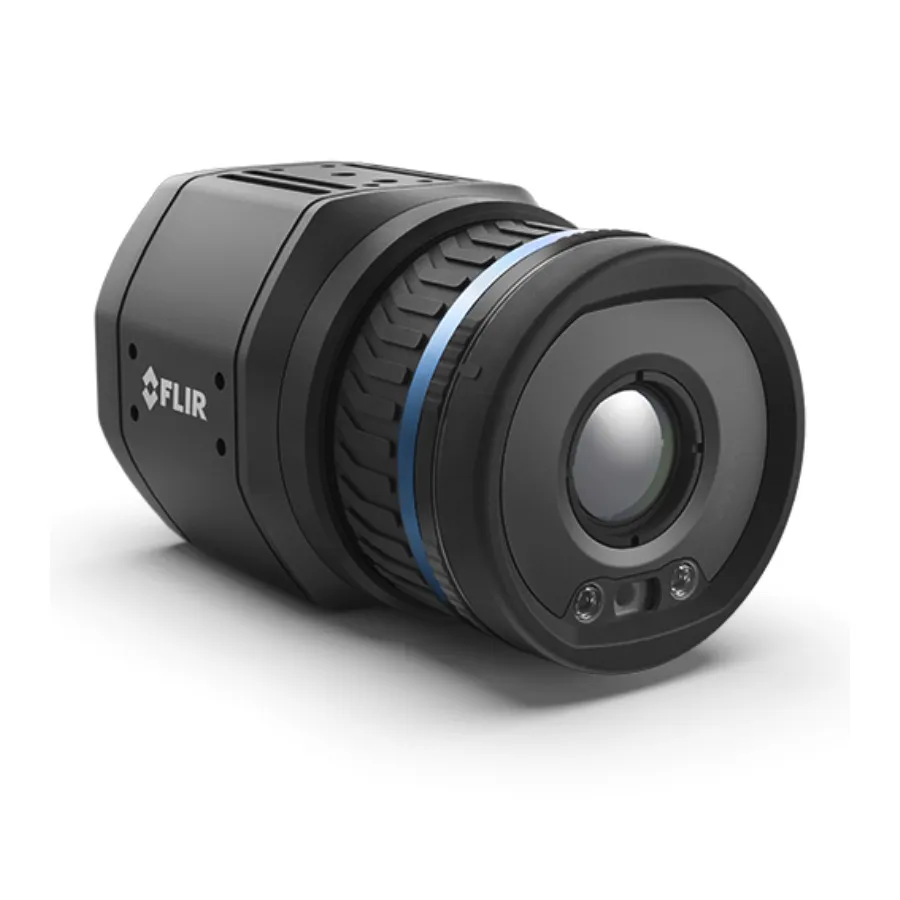

The Teledyne FLIR A500 is a thermal imaging camera designed for researchers and engineers working in electronics, aerospace, and life sciences. This Standard Science Kit includes the A500 image streaming camera with a 24-degree lens, automatic/remote and manual focusing, and integrated macro mode for measuring small components without lens changes.
Key Features
- IR resolution: 464x348 pixels
- Multiple temperature ranges: -20°C to 120°C, 0°C to 650°C, or 300°C to 1500°C
- Automatic/remote and manual focusing for precise thermal measurements
- FLIR Macro Mode for accurate thermal measurements on small objects
- Gigabit Ethernet (RTSP, GigE Vision) for data streaming and control
- Power over Ethernet (PoE) eliminates the need for additional cables
- Positive-lock M-style connectors ensure secure camera connections
- FLIR Research Studio software with intuitive "Connect, View, Record, Analyze" workflow
Applications
- Electronics testing and component thermal analysis
- Aerospace research and thermal characterization
- Life sciences research and biological thermal imaging
- Thermal research and development
Included Accessories
- A500 Image Streaming Camera
- 24-degree Lens
- WiFi Module with Antenna
- Visual Camera with MSX enhancement
- Macro Lens 2.0x
Specifications
| Resolution | 464 x 348 |
| Sensitivity | 40 mK |
| Maximum Temperature | 1500°C |
| Minimum Temperature | -20°C |
| Field of View | 24 x 18° |
| IP Rating | IP54 |
| Series | A Series |
| Alternate Product Number | A500 Standard Science Kit |
| Accuracy | 2°C |
