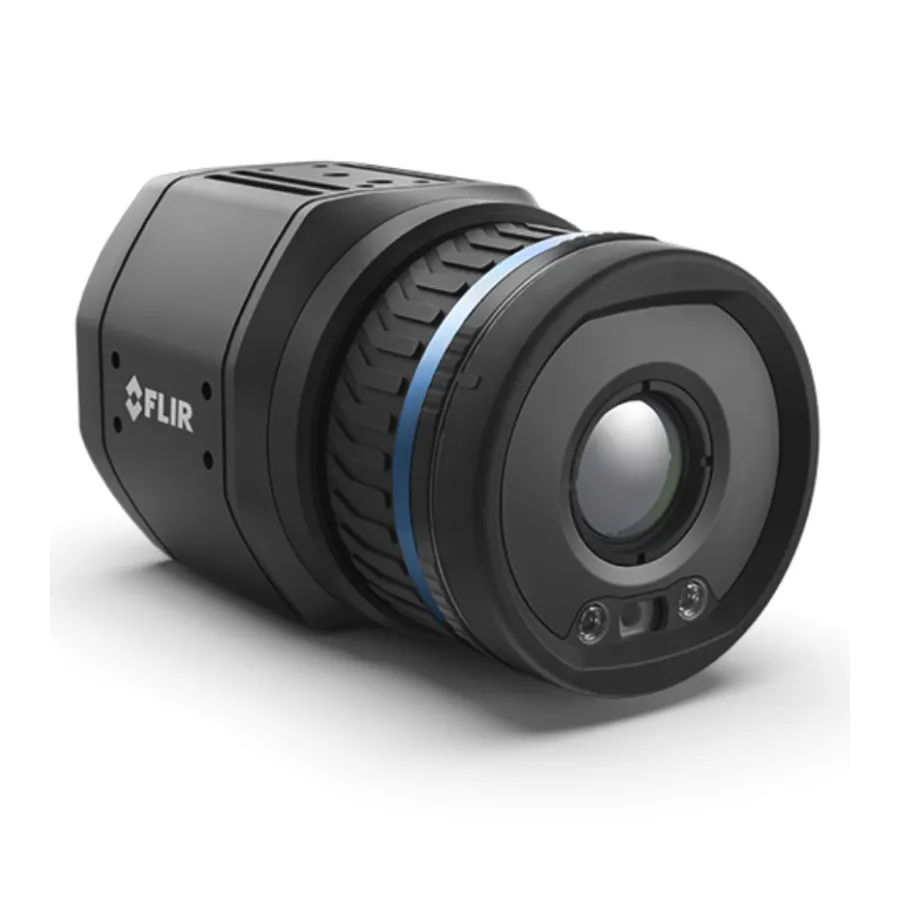

Teledyne FLIR A700 Professional Science Kit (640x480)
Request a quote
Teledyne FLIR A700 Professional Science Kit provides 640×480 thermal imaging with MSX enhancement, Wi-Fi streaming, macro lens, and automated analysis tools.
Product details
| Model | 85903-0102 |
| Manufacturer | Teledyne FLIR |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview
The Teledyne FLIR A700 Professional Science Kit is designed for researchers and engineers working in electronics, aerospace, and life sciences. It provides streamlined thermal imaging capabilities with the A700 image streaming camera featuring a 24-degree lens, MSX image enhancement, radiometric data transmission over Wi-Fi, and a macro lens for close-up thermal measurements on small components.
Key Features
- IR resolution: 640 × 480 pixels
- Standard temperature range: -20°C to 120°C, 0°C to 650°C, 300°C to 2000°C
- 24-degree lens with automatic, remote, and manual focusing
- Patented FLIR MSX image enhancement for better component differentiation
- 2.0X macro lens for accurate thermal measurements on small objects
- Fully radiometric Wi-Fi data streaming to FLIR Research Studio
- Gigabit Ethernet (RTSP, GigE Vision) connectivity
- Power over Ethernet (PoE) for simplified connections
- M-style positive lock connectors
- Digital I/O for parameter control and recording
Included Accessories
- A700 image streaming camera
- 24-degree lens
- 2.0X macro lens
- Wi-Fi module with antenna
- Visual camera with MSX
Applications
- Electronics testing and thermal analysis
- Aerospace component inspection
- Life sciences research
- Thermal measurement and verification
Specifications
| Resolution | 640 x 480 |
| Sensitivity | 40 mK |
| Maximum Temperature | 2000°C |
| Minimum Temperature | -20°C |
| Field of View | 24 x 18° |
| IP Rating | IP54 |
| Series | A Series |
| Alternate Product Number | A700 PRO SCIENCE KIT |
