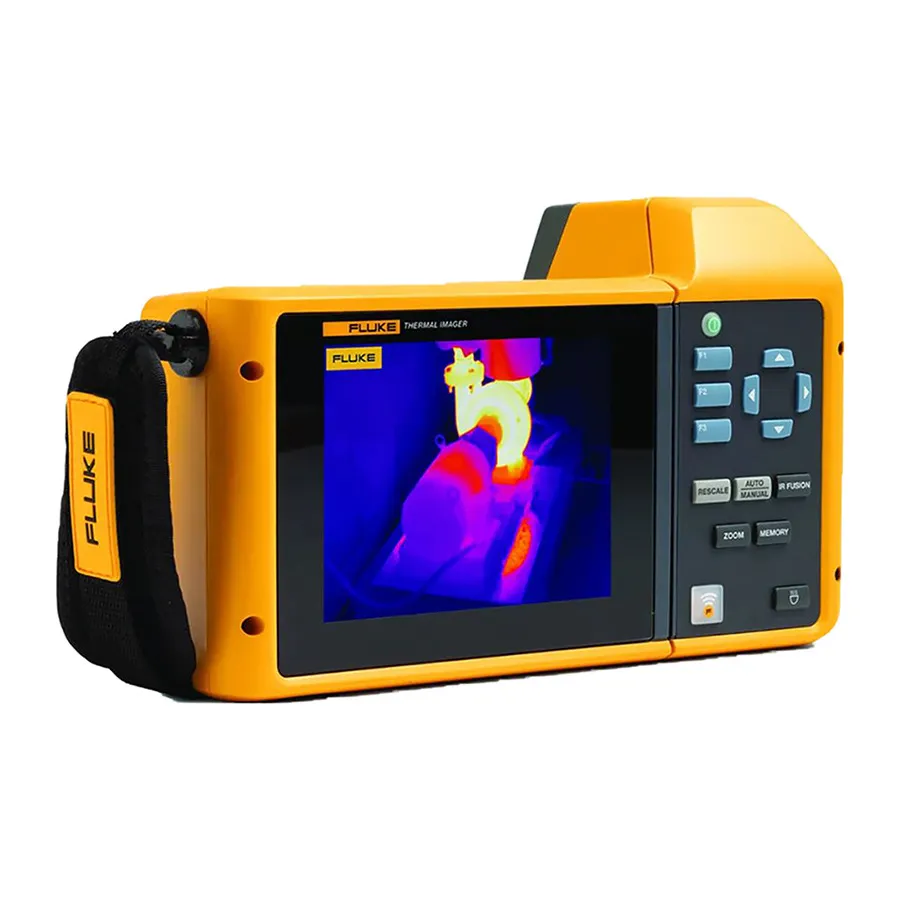

Fluke FLK-TIX580 60HZ Thermal Imaging Camera
Request a quote
Fluke FLK-TIX580 60HZ is a professional thermal imaging camera with 640x480 resolution, 5.7" touchscreen, measures up to 800°C, and includes advanced focusing and IR-Fusion analysis tools.
Product details
| Model | FLK-TIX580 60HZ |
| Manufacturer | Fluke |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview
The Fluke FLK-TIX580 60HZ is a professional-grade thermal imaging camera with a large 5.7-inch color touchscreen and 640x480 infrared resolution. Designed for complex inspections and high-temperature applications, it delivers 150% more viewing area than standard displays and includes powerful Fluke Connect software for advanced image analysis and reporting.
Key Features
- 640 x 480 infrared resolution, expandable to 1280 x 960 via SuperResolution
- Large 5.7-inch color touchscreen with landscape orientation and backlight
- Temperature measurement from -20°C to +800°C (-4°F to +1472°F)
- 60 Hz frame rate for real-time thermal monitoring
- Spatial resolution 0.93 mRad
- LaserSharp™ Auto Focus with integrated laser distance meter
- MultiSharp™ Focus for uniform field clarity
- IR-Fusion™ technology for visual and infrared image blending
- 240° rotating lens for flexible inspection angles
- Optional interchangeable lenses: 2x and 4x telephoto, wide angle, and 25 micron macro
- On-camera analytics and image editing
- Fluke Connect™ desktop software with batch editing and customizable reporting
- LabVIEW and MATLAB toolbox support for R&D and real-time data collection
- Two-year manufacturer warranty
Applications
- Electrical system troubleshooting and maintenance
- HVAC commissioning and performance verification
- Mechanical equipment condition monitoring
- Building energy audits and thermal integrity analysis
- Industrial process monitoring and equipment diagnostics
Specifications
| Resolution | 640 x 480 |
| Sensitivity | 50 mK |
| Maximum Temperature | 1000°C |
| Minimum Temperature | -20°C |
| Field of View | 34 x 24° |
| Zoom | 8x |
| IP Rating | IP54 |
| Display Size | 5.7 in. LCD |
| Series | TiX Series |
