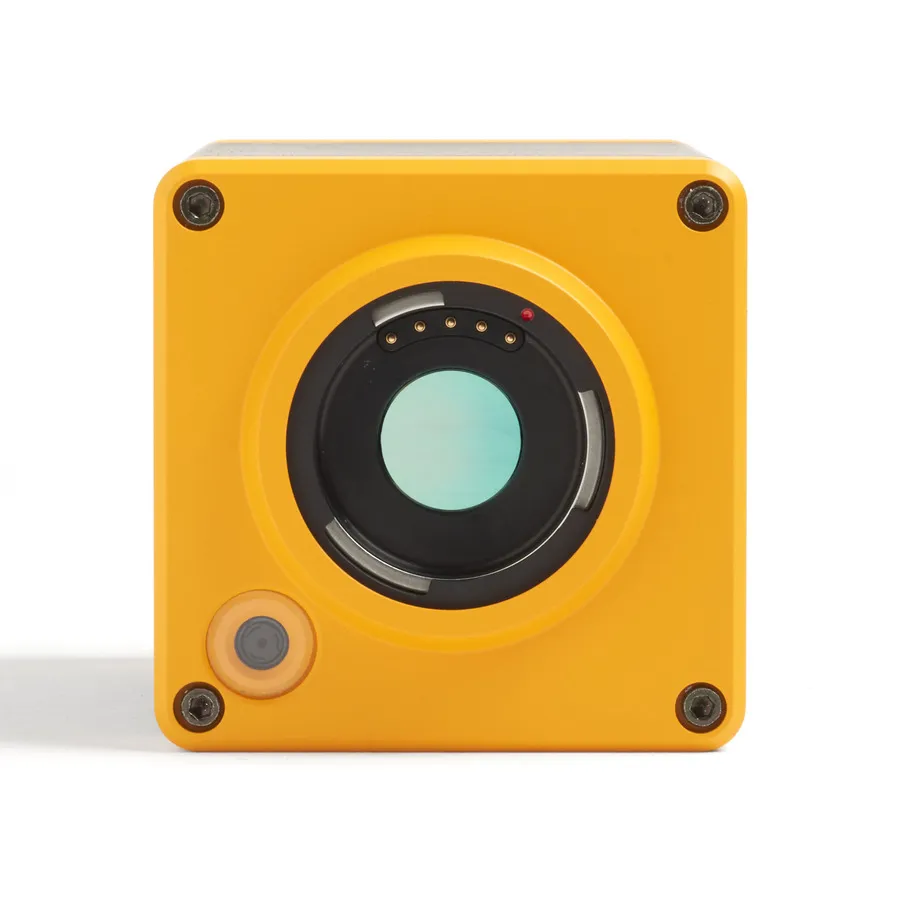

Fluke FLK-RSE600/C 60Hz Thermal Imaging Camera

Overview

The Fluke FLK-RSE600/C is a fully-radiometric, mounted infrared camera designed for research, science, and engineering applications. It features 640 x 480 (307,200 pixels) resolution with 0.93 mRad spatial resolution and 34° H × 24° V field of view, providing superior detail and continuous data streaming integration with MATLAB and LabVIEW.

Key Features

• 640 x 480 (307,200 pixels) resolution with 0.93 mRad spatial resolution
• 34° H × 24° V field of view
• MATLAB and LabVIEW software compatibility for R&D data integration
• Real-time radiometric data streaming to PC software
• SmartView R&D™ desktop software included for advanced thermography analysis
• Optional smart lenses: 2x and 4x telephoto, wide angle, and macro
• Wireless Fluke Connect® system connectivity for image sharing and editing

Applications

• Continuous monitoring and detailed analysis of infrared data in research facilities
• Mounted workstation installations for high-resolution thermal imaging
• Development and quality assurance testing with detailed frame-by-frame analysis
• Remote monitoring and data analysis from SmartView desktop software
• Close-up inspection and detail analysis with optional telephoto lenses

SmartView R&D Software Features

• Advanced thermography software for research and development applications
• Real-time radiometric data streaming from camera to PC
• Advanced analysis tools with customizable markers and areas of interest
• Record data trends and time plots on regions of interest
• Capture radiometric images and recordings manually or with preset conditions
• Customizable report templates for presenting findings and analysis

Included Accessories

• Infrared camera with standard infrared lens
• AC power supply
• Ethernet cable
• Antenna
• SmartView R&D software download key
• Lens cover
• Hard case
