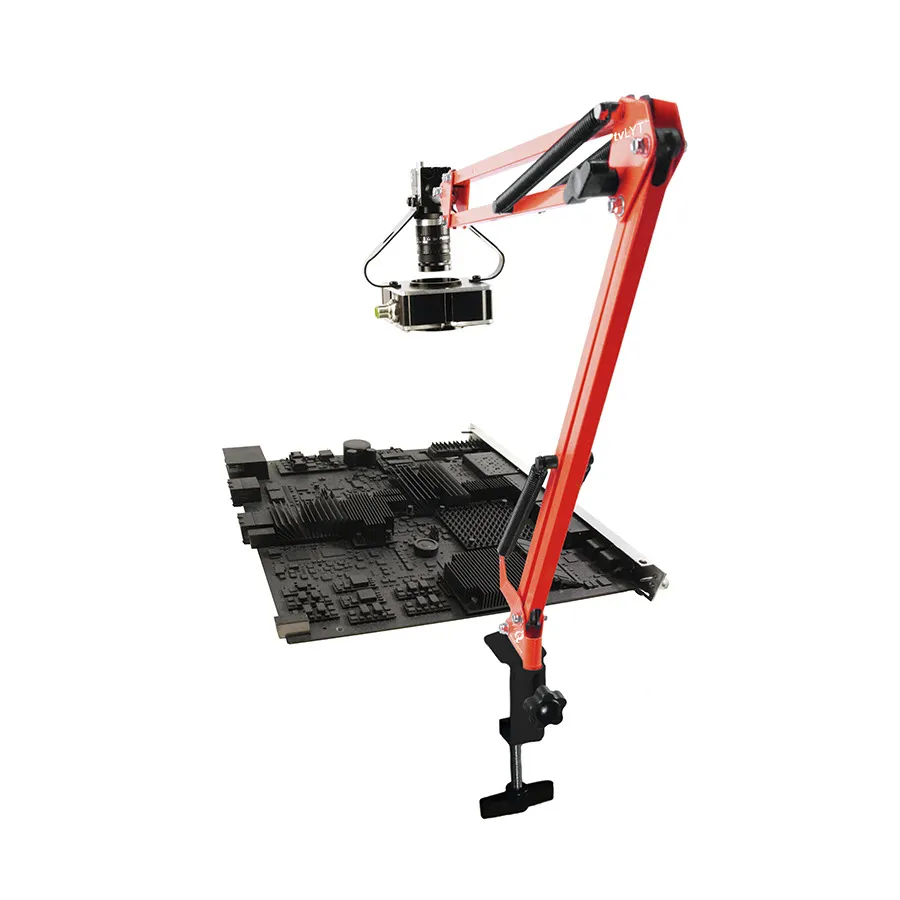

Advanced Thermal Solutions tvLYT Liquid Crystal Temperature Measurement System
Request a quote
Liquid crystal thermography system with manual focus, temperature accuracy to 1°C, gooseneck support, and LED illumination for precision surface measurement.
Product details
| Model | tvLYT |
| Manufacturer | Advanced Thermal Solutions |
| Category | Thermal Imaging Cameras |
| Availability | Made to order |
Description
Overview
The Advanced Thermal Solutions tvLYT is a high-resolution liquid crystal thermography system providing a portable solution for precision surface temperature measurement. The system is completely optical, based on visible light, and independent of surface emissivity, distinguishing it from infrared-based measurement systems.
Key Features
- Manual focus with adjustable field of view (26 x 26 mm at 15 mm distance; 180 x 180 mm at 48 mm distance)
- Software-extended field of view capability to 200 mm with 16x magnification
- Temperature accuracy to 1°C
- Gooseneck support for flexible camera positioning
- LED lighting for high-intensity uniform illumination
- Optical system independent of surface emissivity
Included Accessories
- Camera with gooseneck support
- Thermochromic Liquid Crystals
Specifications
| Zoom | 16x |
| Interface | USB |
