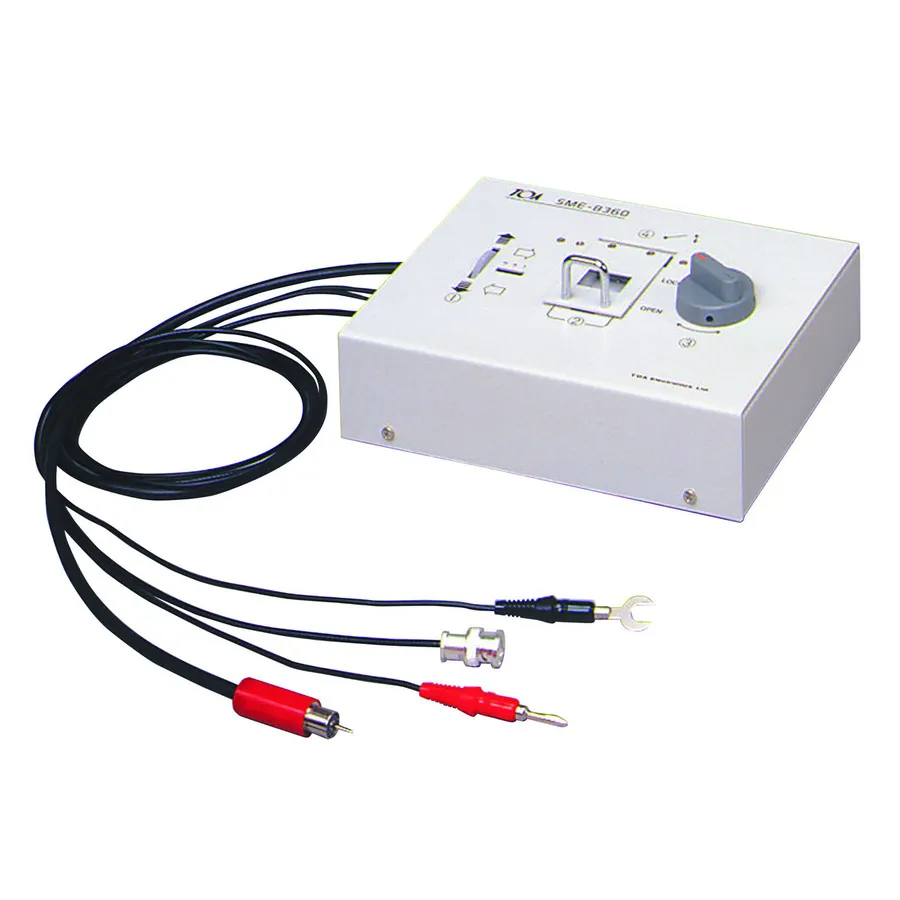

Hioki SME-8360 Electrode for chip capacitor
Request a quote
Hioki SME-8360 chip capacitor electrode for measuring capacitor tip resistance with adjustable jig (0-11mm) and safety interlock cable.
Product details
| Model | SME-8360 |
| Manufacturer | Hioki |
| Category | Test Leads & Probes |
| Availability | Made to order |
Description
Overview
The Hioki SME-8360 is an optional electrode accessory for Hioki super megohmmeters, designed specifically for measuring the tip resistance of chip capacitors. Featuring an adjustable jig mechanism and integrated safety interlock, it simplifies capacitor testing in quality assurance and manufacturing environments.
Key Features
- Specialized for chip capacitor tip resistance measurement
- Adjustable jig accommodates capacitor sizes from 0mm to 11mm
- Interlock cable provides automatic safety shutoff when lid is open
- Optional accessory for Hioki super megohmmeters
- Streamlined design for easy integration into test workflows
Applications
- Quality control testing of chip capacitors in manufacturing
- Capacitor tip resistance measurement and characterization
- Component validation in electronics assembly
- Compliance testing for capacitor specifications
Specifications
