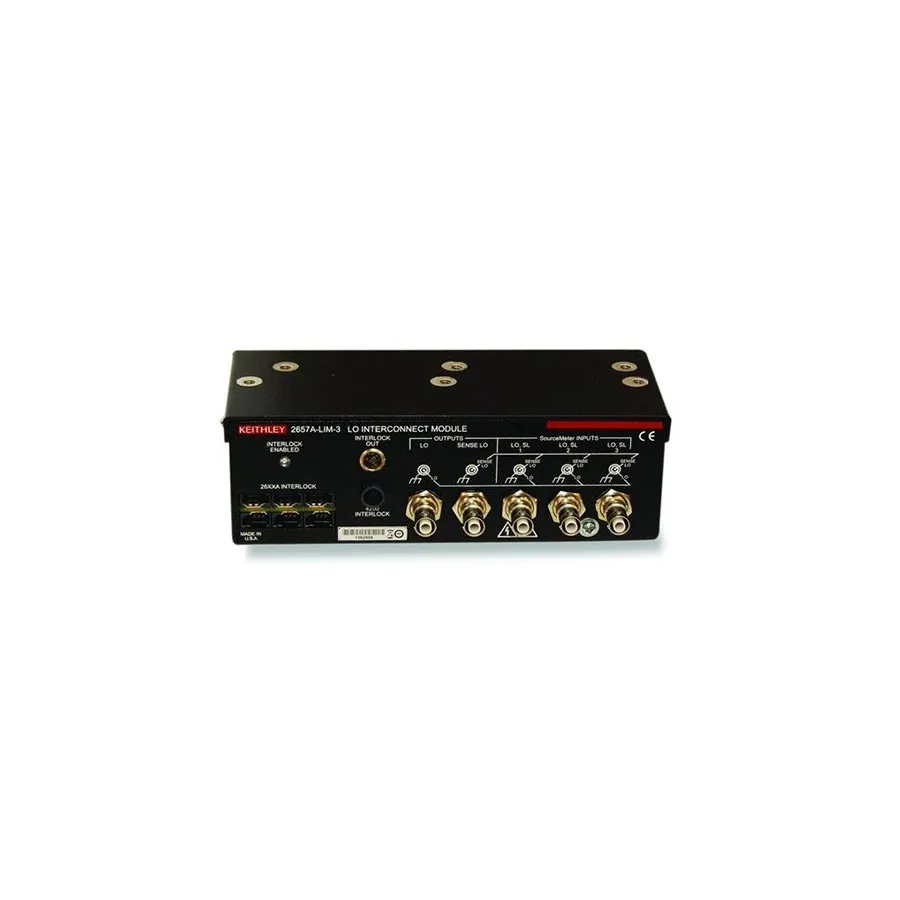

Keithley 2657A-LIM-3 LO Interconnect Module
Request a quote
Keithley 2657A-LIM-3 LO Interconnect Module establishes measurement commons for test systems with multiple source-measure units.
Product details
| Model | 2657A-LIM-3 |
| Manufacturer | Keithley |
| Category | Test Cables & Adapters |
| Availability | Made to order |
Description
Overview
The 2657A-LIM-3 LO Interconnect Module establishes measurement commons (LO and sense LO) for a test system using multiple source-measure units (SMUs) that includes at least one Model 2657A High Power System SourceMeter Instrument. This module creates a single-point interlock connection for SMUs connected to the interlock input terminals. When the interlock circuit is interrupted by an open interlock switch, the outputs of all SMUs will disable.
Key Features
- Establishes measurement commons (LO and sense LO)
- Single-point interlock connection for multiple SMUs
- Automatic SMU output disable on interlock circuit interruption
- Compatible with Model 2657A High Power System SourceMeter Instrument
Applications
- Multi-SMU test systems requiring common measurement points
- Safety-critical testing with interlock protection
