HDE UCT-8/K02 Underground Cable Tester
Request a quote
HDE UCT-8/K02 is a compact underground cable tester with 8kVDC Hi-Pot testing, field-replaceable 9V battery, and LED display for pass/fault indication.
Product details
| Model | UCT-8/K02 |
| Manufacturer | HDE |
| Category | Test Cables & Adapters |
| Availability | Made to order |
Description
Overview
The HDE UCT-8/K02 is a compact, lightweight solution for testing de-energized, shielded underground primary cables. It features a self-contained 8kVDC high voltage source and operates with a single hot stick, eliminating the need for external power equipment. The tester can function effectively up to 1500 ft (457m) away from the source.
Key Features
- Self-contained 8kVDC voltage source for Hi-Pot testing
- One-button operation for simple, repeatable testing
- Field-replaceable 9V lithium battery with low battery indication
- Large LED display with clear pass/fault indication
- Safety feature: measures AC voltage before converting to DC test mode
- Compact, lightweight design for single-handed operation
- Effective range: up to 1500 ft (457m)
Applications
- Underground primary cable system testing
- De-energized cable insulation verification
- Field maintenance and troubleshooting
- Utility distribution line inspection
Specifications
| Series | UCT-8 Series |
| Display | LED |
| Frequency Rating | 50/60 Hz |
| Height | 4.1" |

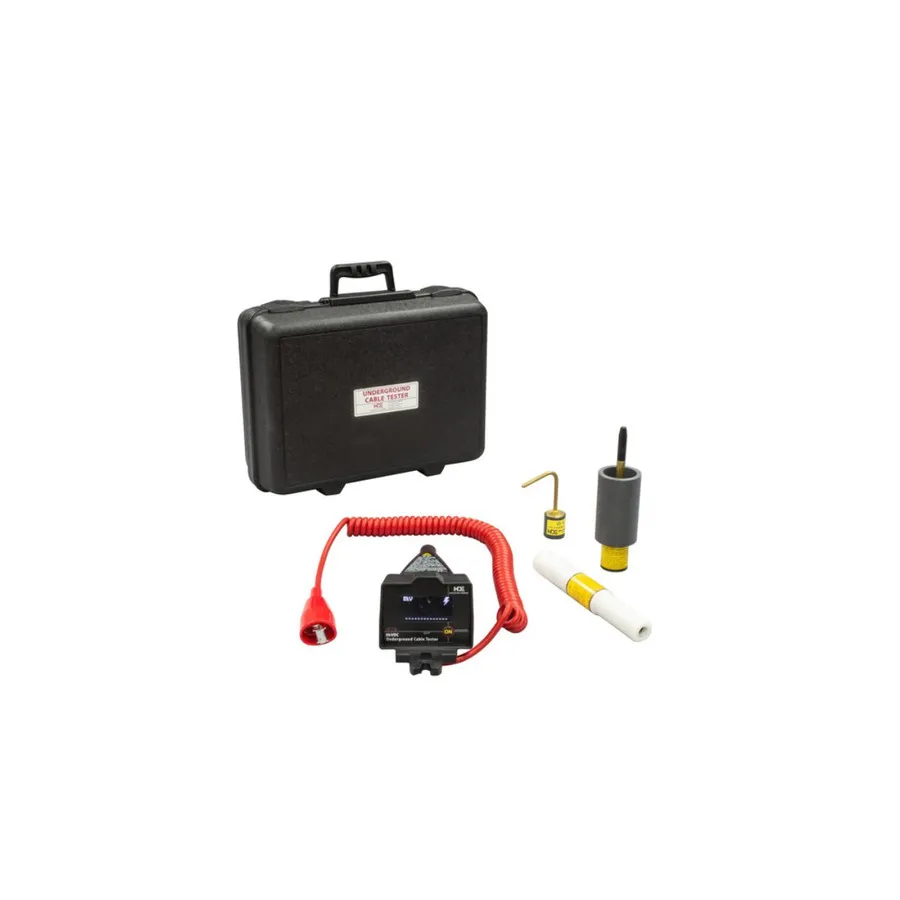

| Includes | UCT-8 Underground Cable Fault Tester, (1) 025-OLPS-5 Overhead Brass Hook Probe, (1) ASP-15/25 UG Bushing Probe, (1) EA-15/25 UG Elbow Probe, CS-UCT Plastic Carrying Case |
| Length | 14" |
| Product Type | Cable Tester |
| Width | 4.6" |
