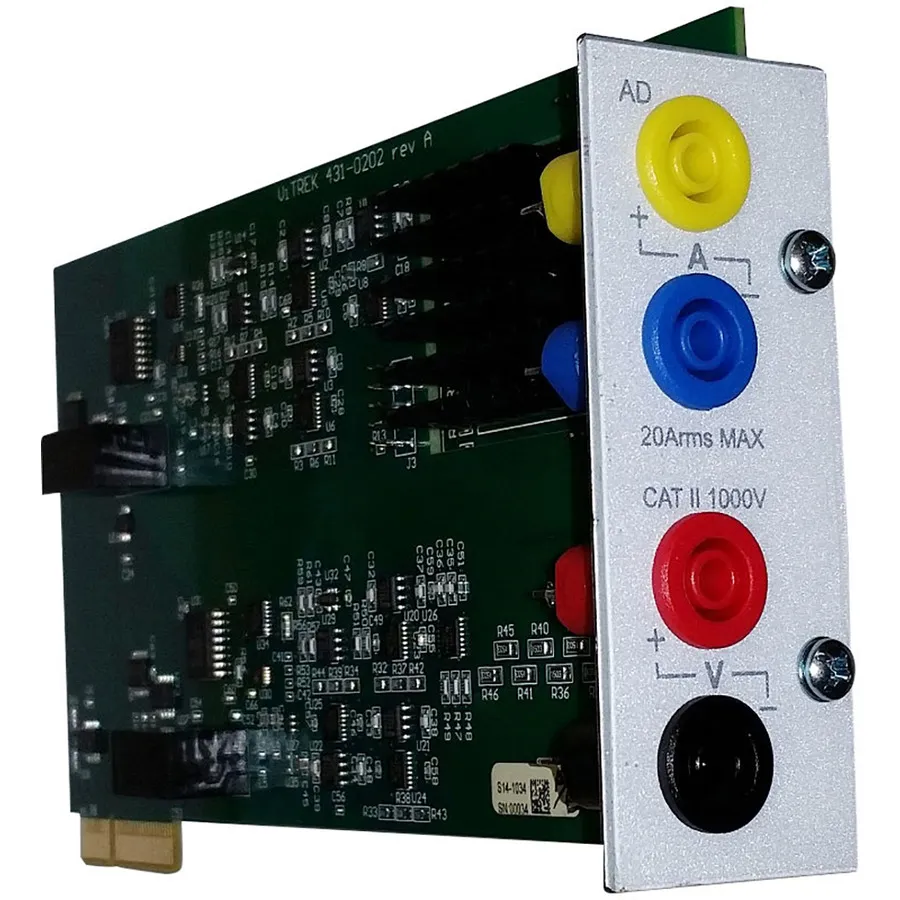

Vitrek AX External Current Channel Card
Request a quote
The Vitrek AX is a high-accuracy external current channel card for the PA900 harmonic power analyzer, offering 0.03% reading accuracy and 1MHz bandwidth.
Product details
| Model | AX |
| Manufacturer | Vitrek |
| Category | Test Accessories & Cables |
| Availability | Made to order |
Description
Overview
The Vitrek AX is an ultra-precision external current channel card designed for the PA900 harmonic power analyzer. It provides simultaneous voltage and current measurement for accurate power analysis and is available as a standalone card that can be installed in the PA900 mainframe.
Key Features
- Ultra-high accuracy of 0.03% (two-year rating)
- 1MHz class bandwidth for comprehensive harmonic analysis
- 24-bit sampling resolution
- 1000Vrms maximum continuous voltage input
- External current transducer input compatible with shunts or CTs (20µV to 15Vrms)
- Resolution down to 0.1µV for precise measurements
Included Accessories
- 4 color-coded heavy-duty 1.5-meter test leads
- NIST calibration certificate with no data
Applications
- Precision power quality analysis
- Harmonic measurement and monitoring
- Equipment efficiency testing
- Power factor assessment
Specifications
| Series | PA900 Series |
