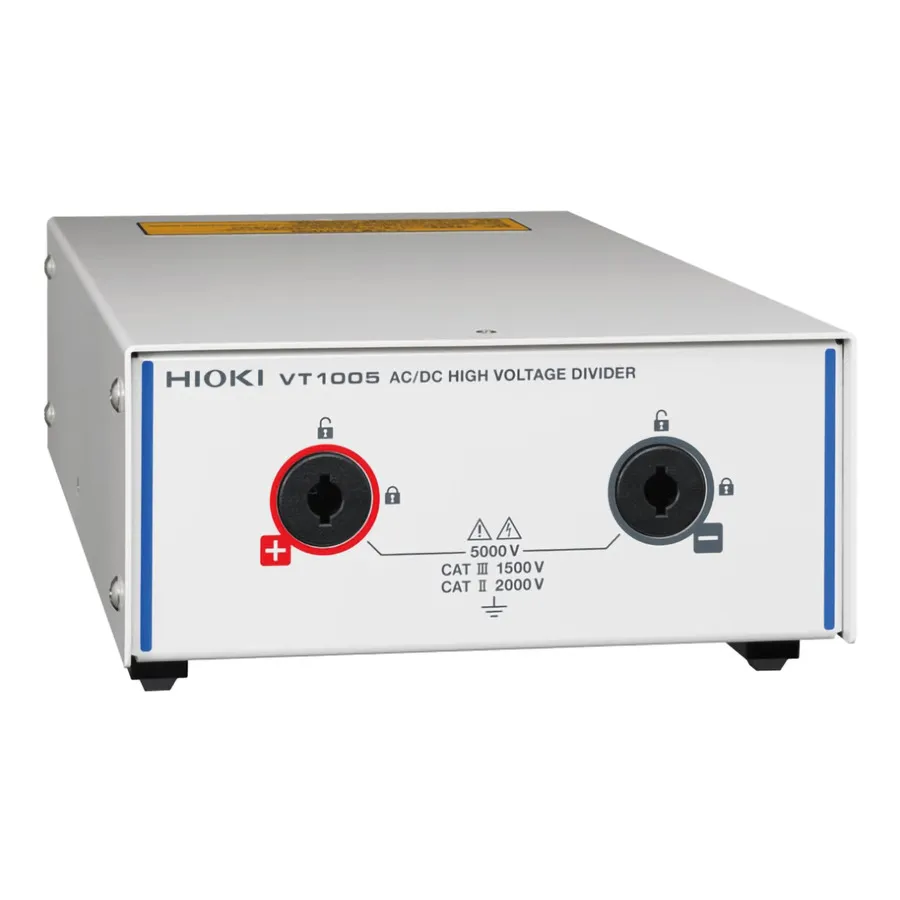

Hioki VT1005 AC/DC High Voltage Divider

Overview

The Hioki VT1005 is an AC/DC high voltage divider that safely reduces voltages up to 5000V to levels compatible with power analyzers. With a 1000:1 divider ratio, it enables accurate measurement of high-voltage systems including inverters in rail and power applications. The device features excellent frequency flatness from DC to 4MHz, allowing precise measurement of both fundamental and switching frequency components.

Key Features

• 1000:1 divider ratio for safe high voltage measurement
• Maximum input voltage: 5000V (2000V CAT II, 1500V CAT III)
• DC to 4MHz frequency range
• Measurement accuracy: ±0.08% (DC), ±0.04% (50/60 Hz), ±0.17% (50 kHz)
• High common-mode and high-frequency noise immunity
• Excellent frequency flatness for accurate switching frequency measurement
• Compatible with Hioki PW6001, PW3390, and PW8001 power analyzers

Applications

• High-voltage inverter efficiency measurement
• Rail system power analysis
• Industrial power conversion monitoring
• Switching frequency component analysis
