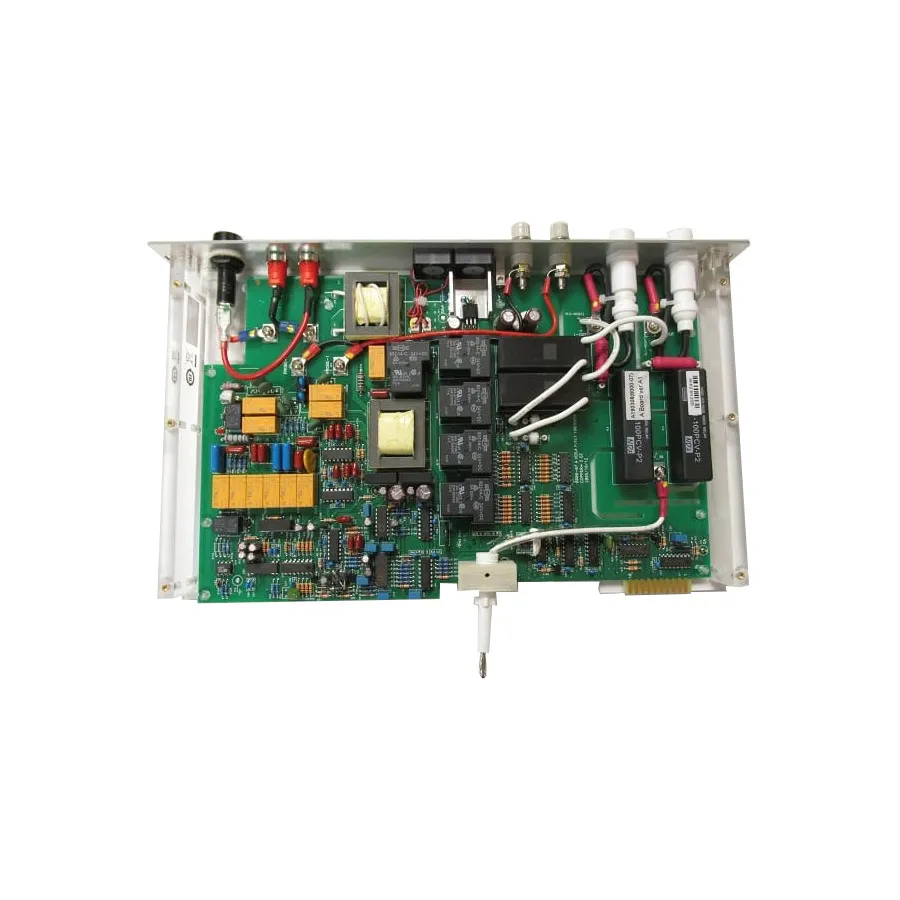

Chroma A190308 Hipot/Line Leakage/Probe Scanner, 20A

Overview

The Chroma A190308 is a high-capacity hipot/line leakage/probe scanner designed for medical equipment testing. With a 20A power rating, it accommodates demanding safety standards for complex medical devices when used with Chroma 19032/19032-P Electrical Safety Analyzers.

Key Features

• High-capacity 20A rated design for demanding applications
• Integrated hipot and line leakage current testing
• Dual probe capability (P1 and P2)
• LC Power Output: 300V/20A
• Earth, touch, patient, and patient auxiliary leakage current measurement
• Maximum hipot voltage: 5KVac / 6KVdc

Applications

• Medical equipment electrical safety testing
• Multi-point safety verification for complex medical devices
• IEC 60601 and other medical safety standard compliance
