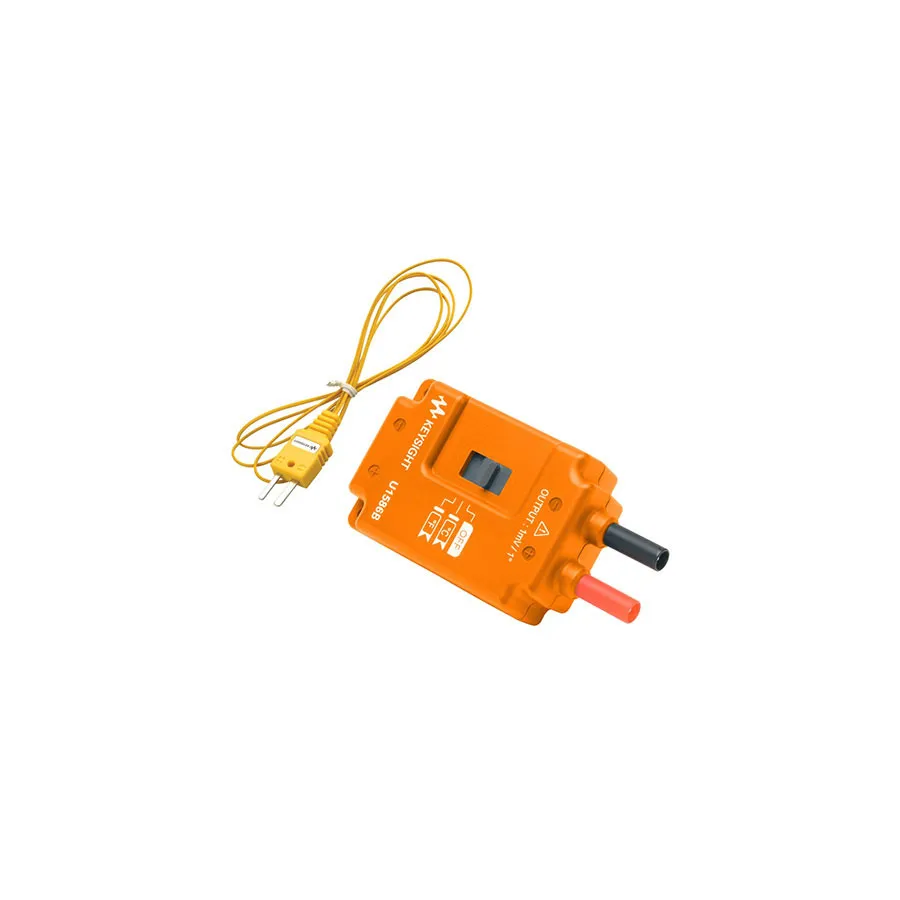

Keysight U1586B Temperature Adapter
Request a quote
Keysight U1586B temperature adapter with K-type bead probe measures -50°C to 1000°C for handheld oscilloscopes and digital multimeters.
Product details
| Model | U1586B |
| Manufacturer | Keysight |
| Category | Temperature Probes & Sensors |
| Availability | Made to order |
Description
Overview
The Keysight U1586B temperature adapter expands the measurement capabilities of handheld oscilloscopes and handheld digital multimeters to measure temperature. Supplied with a K-type bead thermocouple, it provides temperature readings from -50°C to 1000°C (or -58°F to 1832°F) with selectable output units.
Key Features
- K-type bead thermocouple probe included
- Temperature range: -50°C to 1000°C (-58°F to 1832°F)
- Slider switch for °C or °F measurement selection
- Output: 1 mV/°C or 1 mV/°F
- Single standard 9V battery (Alkaline or Carbon-Zinc)
- Approximately 1600 hours battery life with alkaline battery
Applications
- Temperature measurement with handheld oscilloscopes
- Temperature measurement with handheld digital multimeters
- Industrial troubleshooting and field testing
Note
The U1586B replaces the U1586A model; the only difference is color.
